Nauticam NA-OM5II Underwater Housing for Olympus OM-5II Camera

Nauticam NA-OM5II Underwater Housing

Overview & Compatibility

The NA-OM5II is a premium underwater housing crafted for the OM SYSTEM OM-5 II mirrorless camera, enabling users to take advantage of this lightweight, travel-friendly hybrid camera underwater.

Technical Specifications

• Dimensions: 197 mm (W) × 154 mm (H) × 99 mm (D)

• Depth Rating: 100 meters

• Port Mount: Nauticam N85 Port Mount

Ergonomics Control Placement

The NA-OM5II is engineered to place all of the essential controls for focus, shooting, menu navigation, AF setting, and more right at your fingertips. A variety of thumb paddles, buttons, and even the camera shutter are located directly off the and left and right side handles.

Lenses & Ports

The housing is designed of Nauticam N85 port mount, with a large variety of micro 4/3's lenses to choose from.  You can find a full list of supported lens available on the port chart link below:

https://drive.google.com/file/d/1nfhvPTiVhlxSeGXMWP5fWeF0PHpP1KKW/view

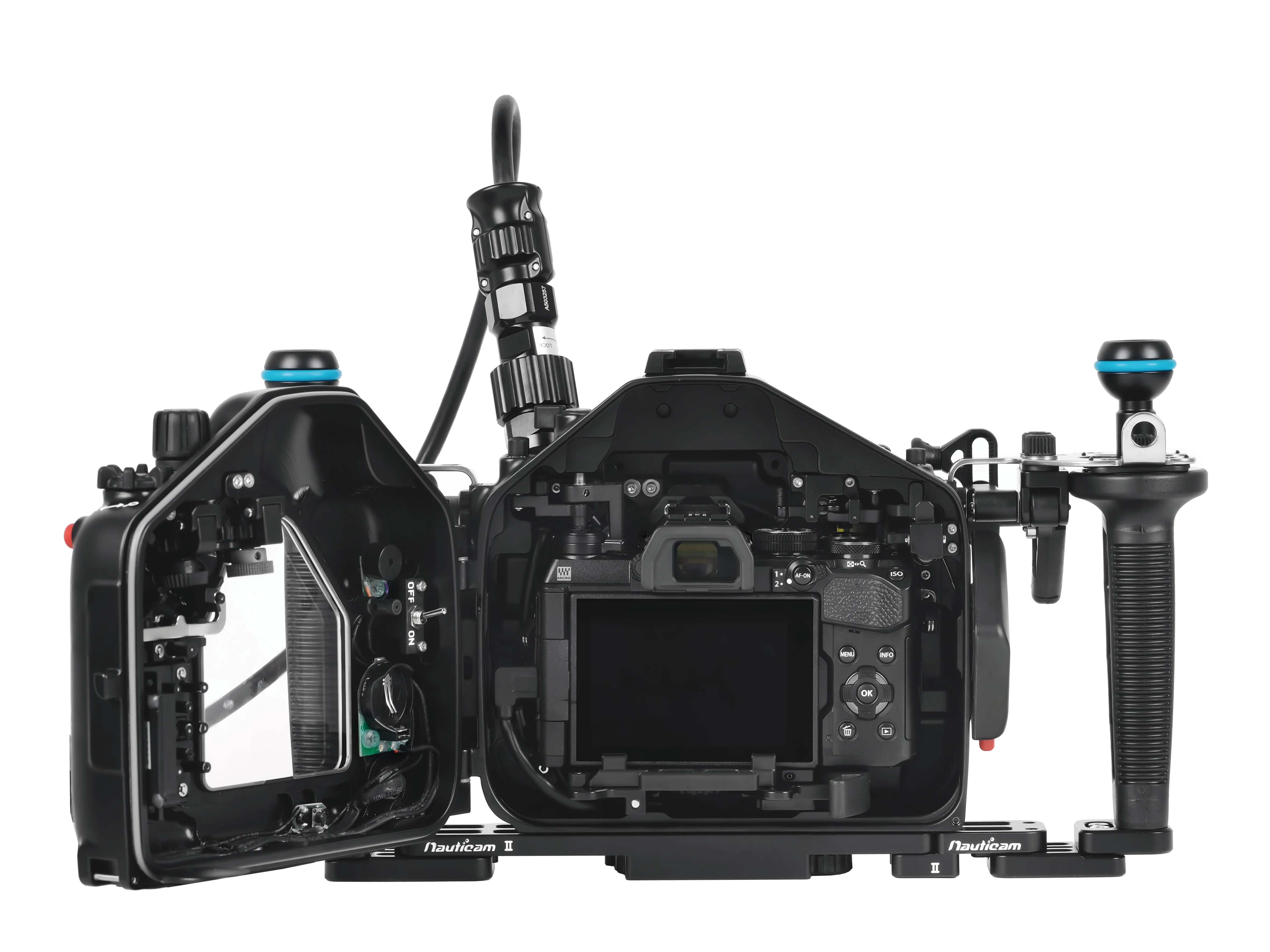

In addition, lens changes can be made directly from the front of the housing, providing quick and easy access for lens changes in the field, without having to open the rear of the housing.

Water Contact Optics

You can also take full advantage of Nauticam's wide range of water-contact optics such as the WWL-C, CMC-1 & 2,  EMWL, MFO-1 and many more. These water contact optics offer superior image quality compared to traditional camera lens & port combos, along with unique benefits for shooting everything from underwater wide angle images, to super macro images.

Flash Triggering

For optical strobe firing, Nauticam offers the Mini Flash Trigger for Olympus.  This device provides manual triggering of any optical strobes and is powered by a pair of simple coin style batteries for a hassle free solution to strobe lighting.

Electrical sync cord triggering of wired strobe systems is also supported using an electrical Nikonos style bulkhead and ground trigger hotshoe kit

Vacuum & Leak Detection Electronics:

The housing includes Nauticam's vacuum electronics and moisture alarm system pre-installed. When combined with an optional vacuum valve, a color-coded LED panel continuously monitors seal integrity and for potential leaks. If the seal is lost or moisture is detected, the LED panel alerts the diver via blinking colored LED along with an audible alarm. More importantly, the vacuum allows you to perform a seal check to ensure the entire housing is ready to dive, before entering the water, providing some peace of mind that you've assembled the entire rig properly.

Enhanced Viewfinder Support

Aside from the Z5II's built-in electronic viewfinder & LCD, Nauticam’s full-frame optical viewfinders can be mounted via the optional LCD window kit . These viewfinders provide an enhanced view of the camera's electronic viewfinder making it much easier to see critical focus and compose your images properly.  They're available in both a angled and straight orientation option based on your preference.

Accessory Mounting Support

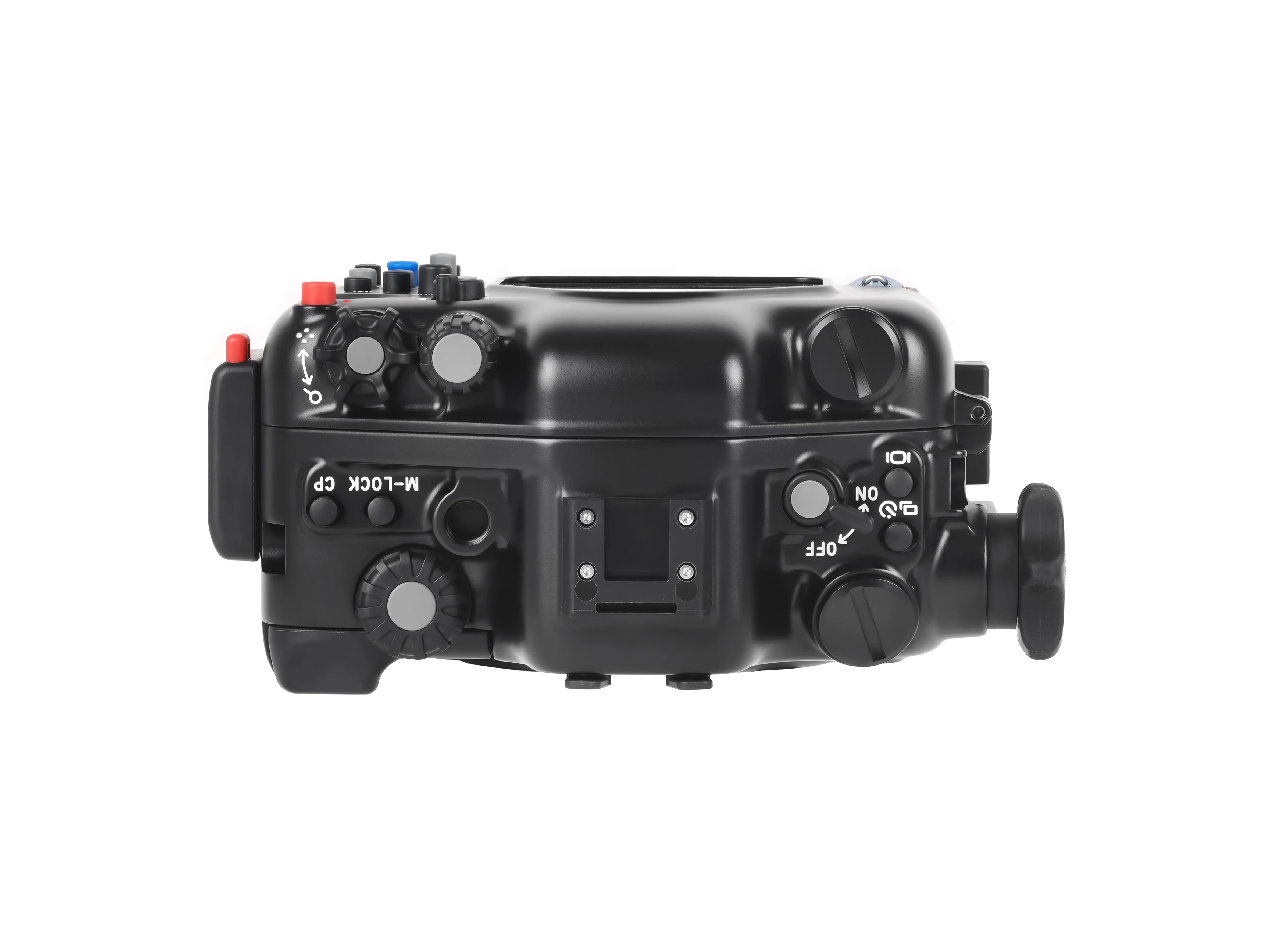

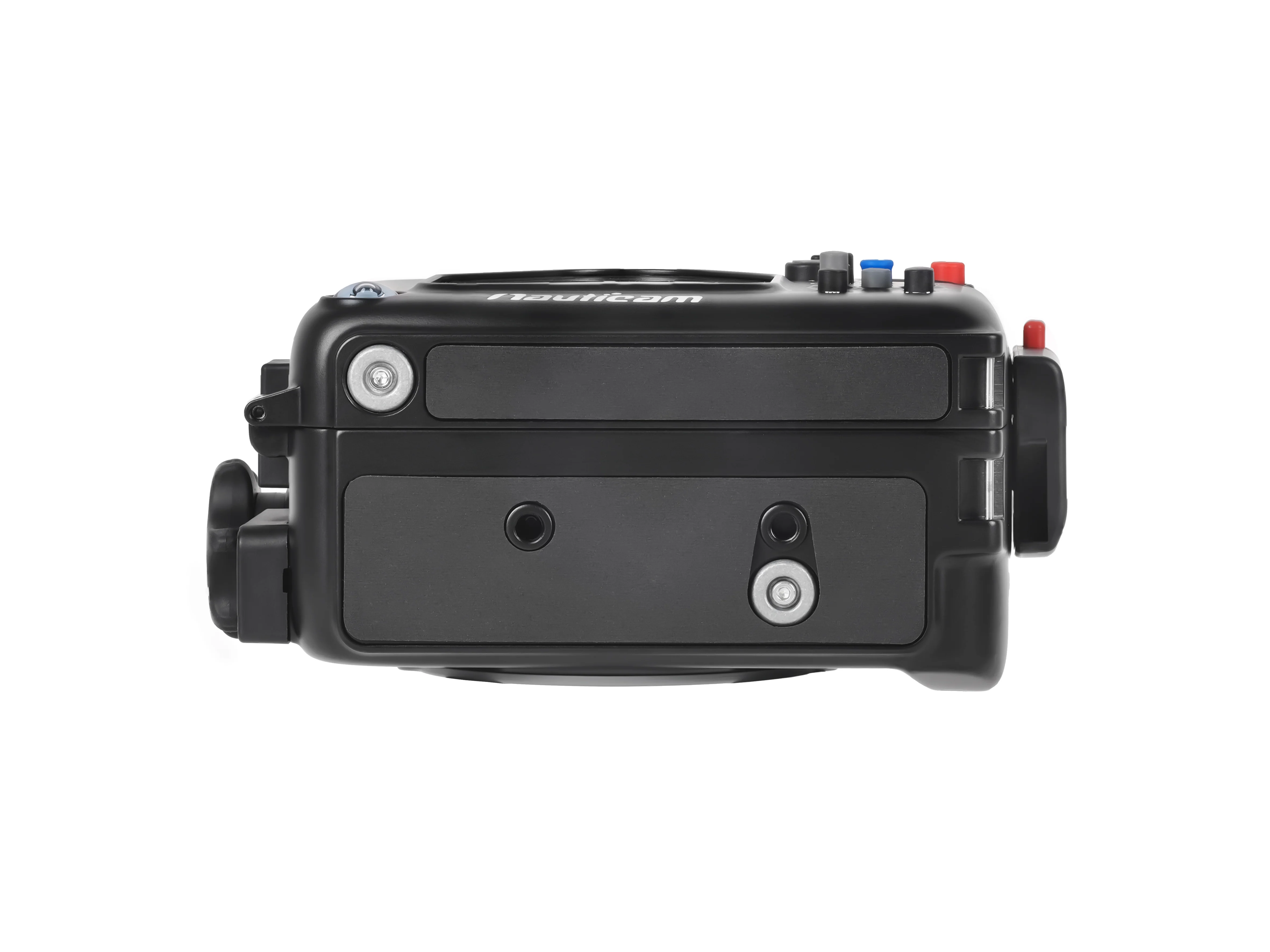

Along the top of the housing you'll find a M10 threaded hole and a cold shoe mount for attaching additional accessories such as action cameras, lighting, and more.  The bottom of the housing features 1/4-20 female threaded holes for mounting accessories such as tripod plates.

What's in the box:

• NA-OM5II Housing
• Housing Cap
• 2x Optical bulkhead caps
• Panasonic CR-2032 Battery (pre-installed for moisture alarm)
• 90139 Spare main O-ring, O-ring remover and lubricant
• Set of Allen Keys
• Padded housing bag and shoulder strap


Recommended Accessories

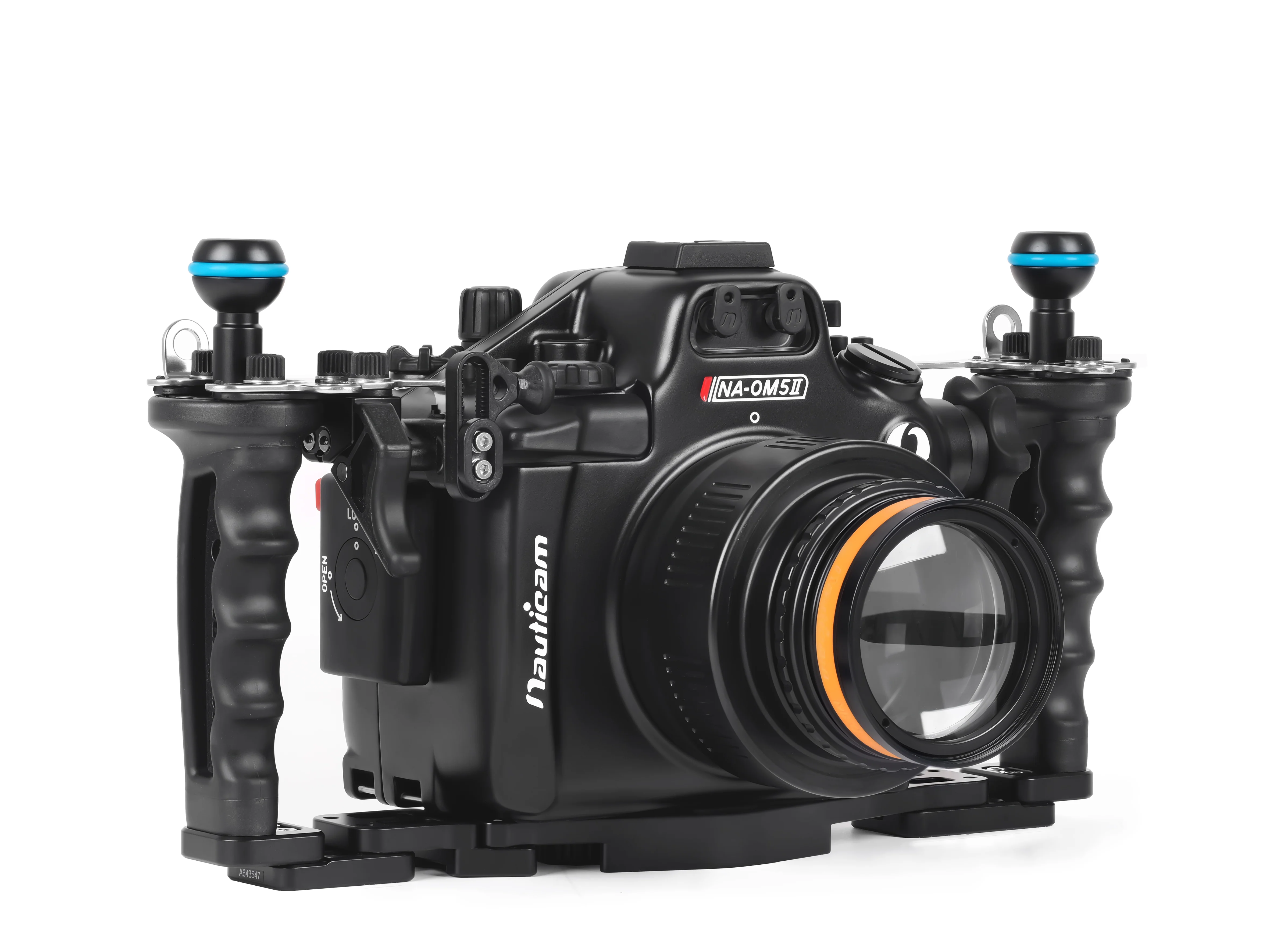

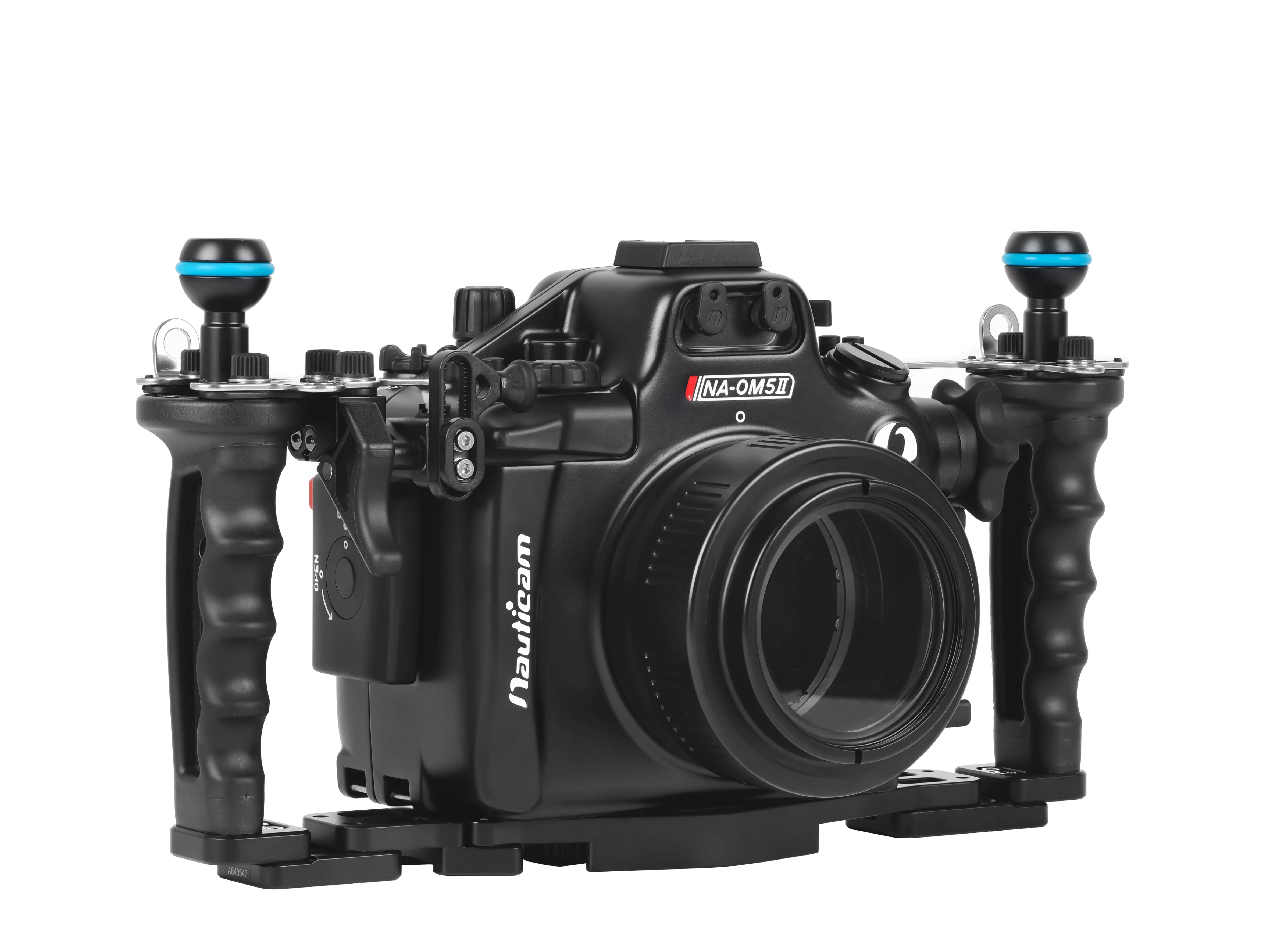

Housing Tray and Hand Strap

• 71206 Easitray II with left handle (with 2pcs 1/4'' screws)
• 71207 Flexitray II with left handle (with 2pcs 1/4'' screws)
• 71208 Adjustable right handle II (for Easitray II & Flexitray II)

• 71311 Strobe mounting ball for Easitray & Flexitray

• 36316 Hand strap for Mirrorless IL camera & compact camera housing (Standard)
• 36323 Long hand strap for Mirrorless IL camera & compact camera housing

Mounts-Valves-Viewfinders

• 25221 M10 strobe mounting ball for housing
• 25312 Light mounting stem for cold shoe
• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 32222 NA-OM5II LCD window for Nauticam Full Frame viewfinder
  • 32215 is included in 32222 (for use with 32211/32213)
• 32211 Nauticam Full Frame Straight Viewfinder 32° / 1:1

• 32213 Nauticam Full Frame Angle Viewfinder 32° / 1:1

Surface USB-PD Power Bank

• 26325 USB-C Bulkhead with USB-C Connector


HDMI Output

Required accessories for HDMI 1.4 Cable System

• 25033 Standard HDMI bulkhead with M16 thread

• 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera)

Compatible Monitor Options

• 16612 Nauticam 7'' T7  UW ULTRAHD Monitor  (HDMI 1.4 input, excl. cables)
  • 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)

• 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
  • 25082 HDMI 1.4 Cable for Ninja V housing in 0.75m Length (for connection from Ninja V housing to HDMI bulkhead)

Wet Lenses

Macro

• 81203 Super Macro Convertor 3 (2.3x Magnification)
• 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
• 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
• 81501 Mid-range Focus Optimizer 1
• 81503 Mid-range Focus Optimizer 3

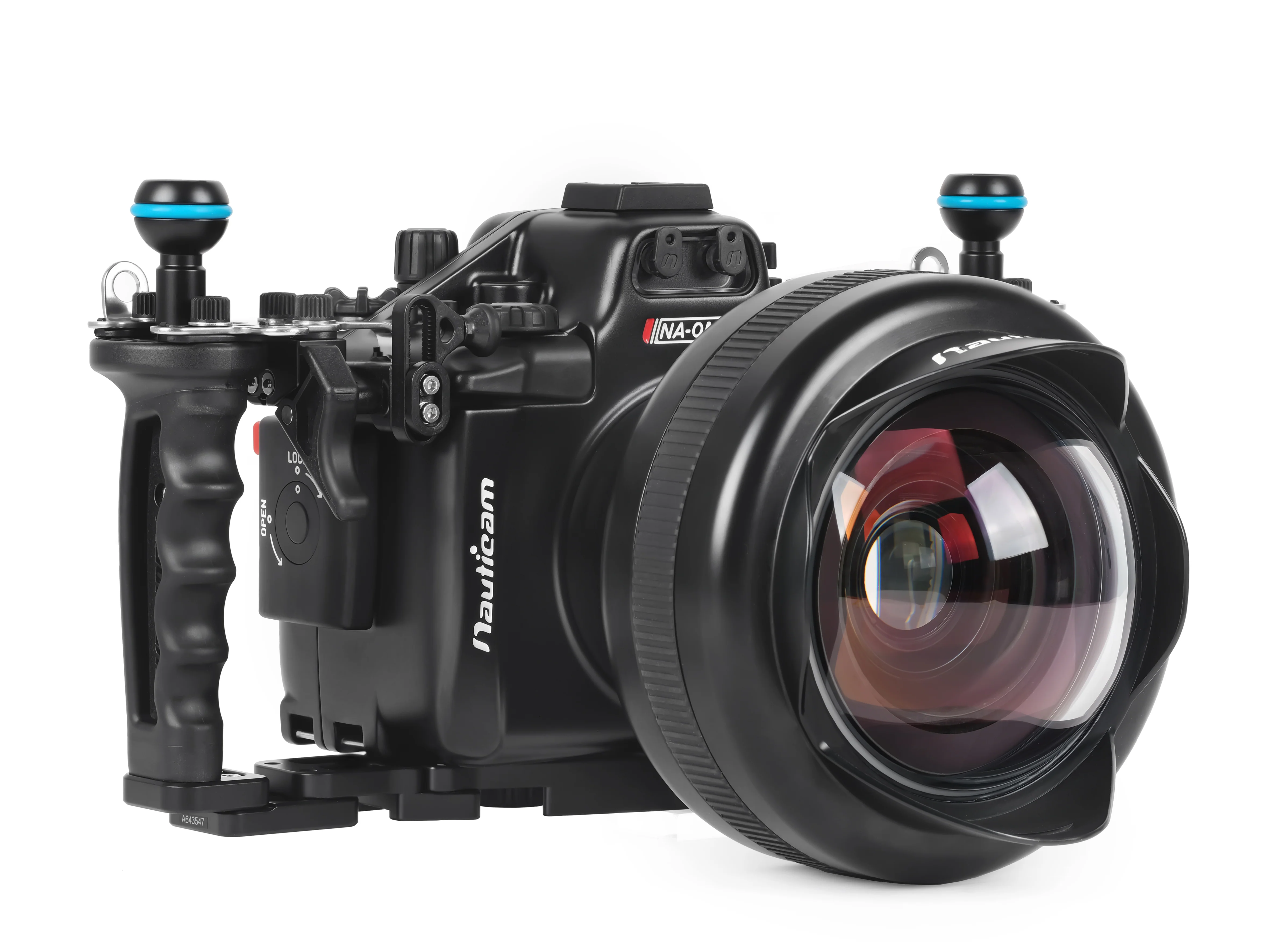

Wide-angle

• 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
• 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)

Macro to wide-angle

• 87301 EMWL Set #1 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)

Instruction Manual PDF Download
