Nauticam Mid-range Focus Optimizer 1 (MFO-1)

Nauticam Mid-range Focus Optimizer 1

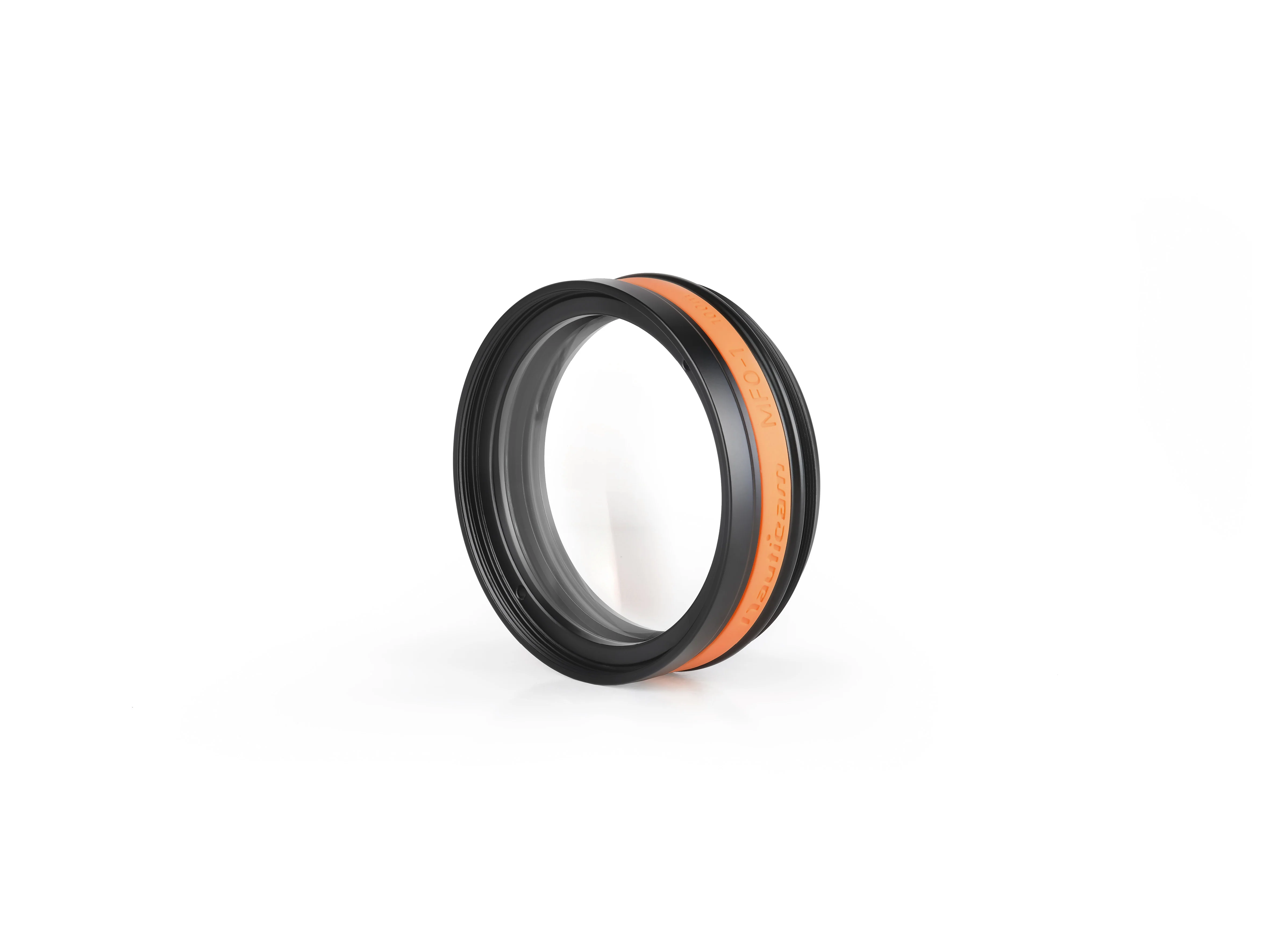

Introducing Nauticams newest Water Contact Optic, the Mid-range focus optimizer or MFO-1. The MFO-1's main function is to cancel the focus distance limitation of macro lenses underwater and provide ample focus distance for different sizes of subjects which were previously limited by using SMC-1 or CMC lenses.  The MFO-1 also greatly improves optical performance by minimizing aberration.

Mid-range Focus Optimizer 1 (MFO-10 Specifications

Dimensions	OD 70mm x H 26mm
Weight in air	218g
Buoyancy in water	Negative 150g
Magnification (*1)	1.2x
Working Distance (*1)	12.5cm - 114cm
Body Construction	Hard-anodized aluminum alloy
Lens construction	3 elements in 2 groups
Lens Coatings	Anti-reflection coating
Mount thread diameter	M67
Depth rating	100m

*1 Tested with Nikon AF-S VR Micro-NIKKOR 105mm f/2.8G IF-ED

split

resources

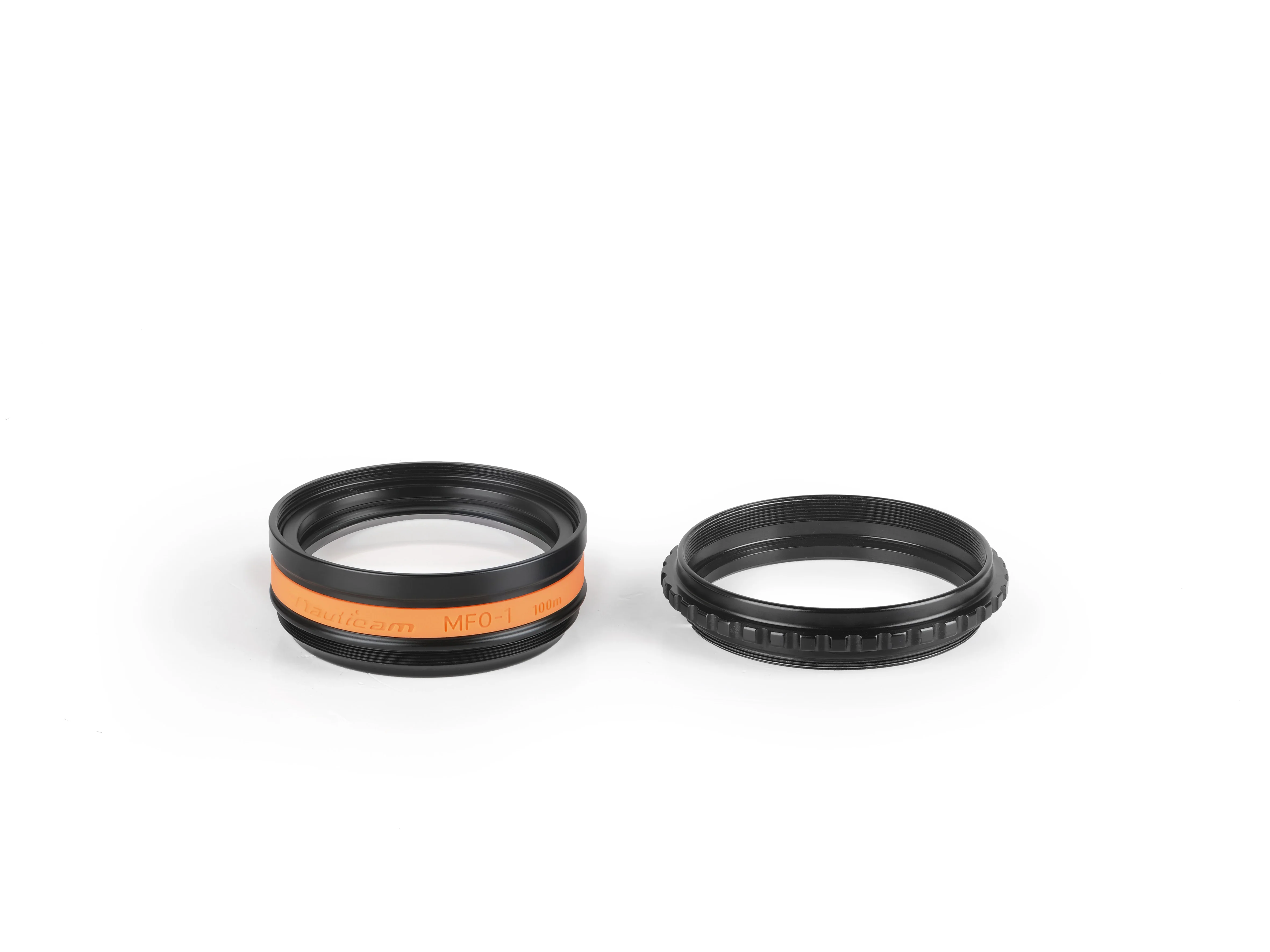

Included in the box:

• Front and rear rubber caps
• Neoprene bag
• M67 Spacer ring for SMC/CMC
• Cleaning cloth

Compatible Lenses (More to be tested)

• Nikon AF-S VR Micro-NIKKOR105mm f/2.8G IF-ED
  Max. Magnification: 1.2x, Working Range: 12.5cm-114cm
• Nikon AF-S Micro NIKKOR 60mm f/2.8G ED
  Max. Magnification: 1.1x, Working Range: 1.2cm-112cm
• Olympus M. Zuiko Digital ED 60mm f2.8 Macro
  Max. Magnification: 1.1x, Working Range: 5.8cm-112cm
