Nauticam Underwater 7'' T7 HD UltraBright Monitor (HDMI 1.4 input, excl. cables)

Introducing the Nauticam 7” T7 HD UltraBright Monitor — built for serious videographers and photographers who need to operate in the most demanding environments. This monitor features an ultra-bright 3000 nit display, making it visible even in bright conditions. It offer up to 6 hours on a single charge, perfect for long shoot days. In addition the monitor is complete loaded with assist tools such as Focus Peaking, False Color, and Histogram. The T7 is a reliable, high-performance monitor, and make a perfect addition to any Nauticam shooters existing equipment.

Technical Specifications

Dimensions	204mm(W) x 150mm(H) x 67mm(D)
Brightness	3000nit
Resolution	1920 x 1200
Input Signal Formats	4KP30 with HDMI input
HDMI/SDI Support	HDMI in only

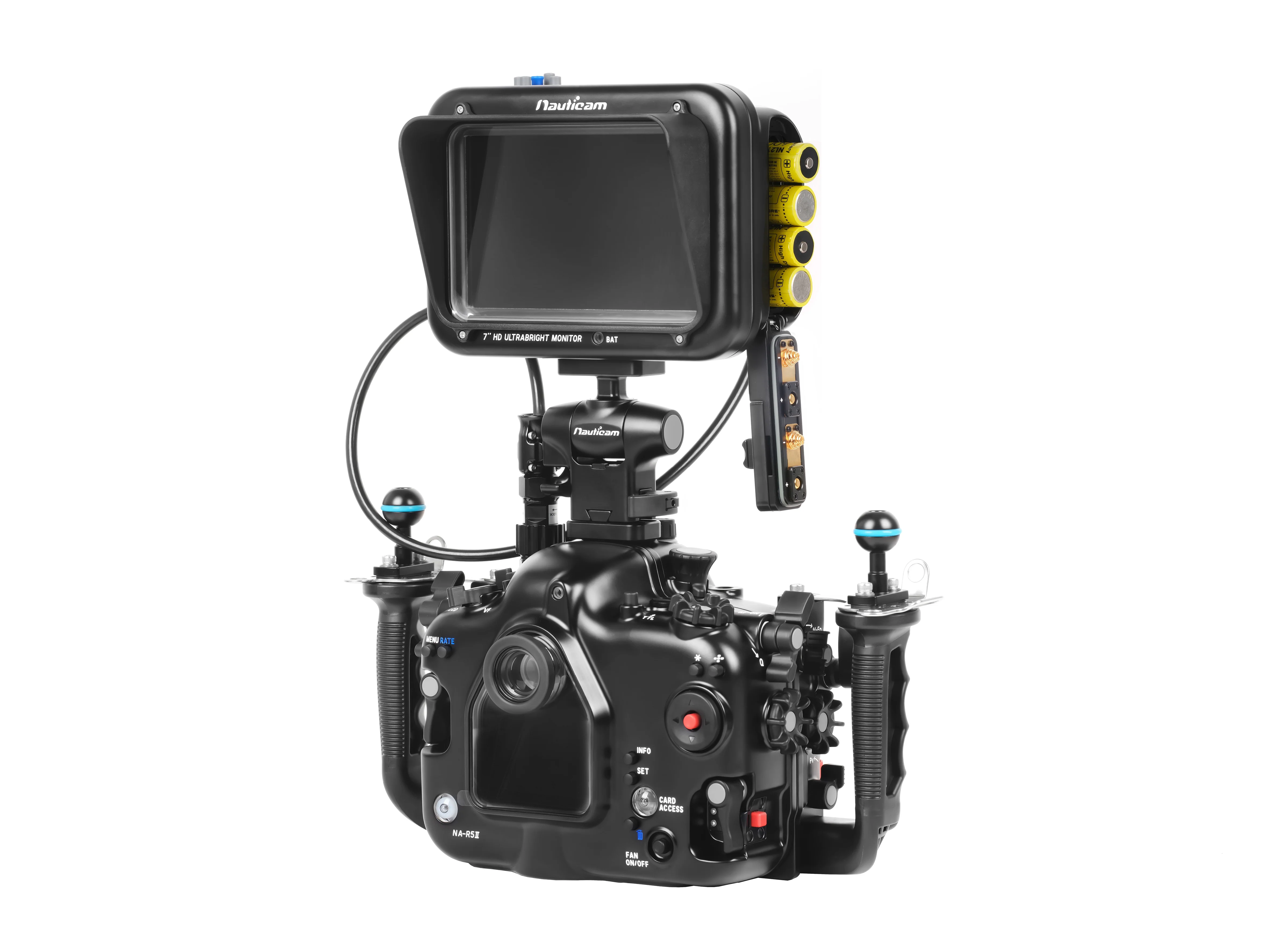

Recommended Batteries  (Not included)	4x Nitecore NL2160/2160HP 6000mah or 4x NL2153/2153HP 5300mah batteries
Recommended Battery Charger (Not included)	Nitecore UMS4 Intelligent USB Four-Slot Superb Battery Charger
Run time	Up to 6h at default backlight level 5  (with 4x new NL2160HP 6000mah batteries) *1
Included accessories	Monitor Hood, Swivel and Tilt Adjustable Monitor Mount System
Weight in Air	2.5kg (incl. Swivel and Tilt Adjustable Monitor Mount System)
Buoyancy in Water	Negative 0.83kg (incl. Swivel and Tilt Adjustable Monitor Mount System)
Depth Rating	100m

*1.  Please make sure the 4 protected batteries are full charged before use.

split

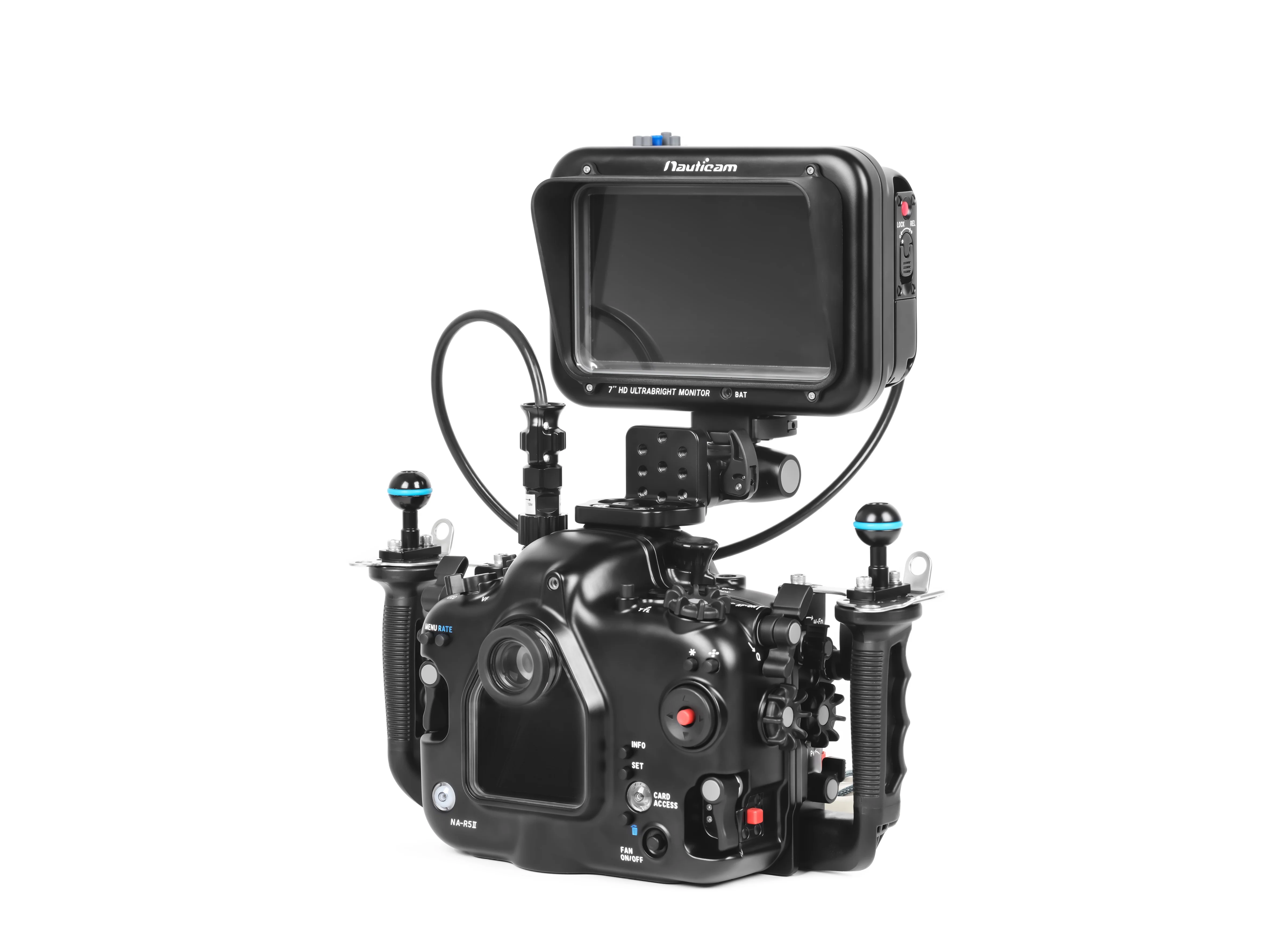

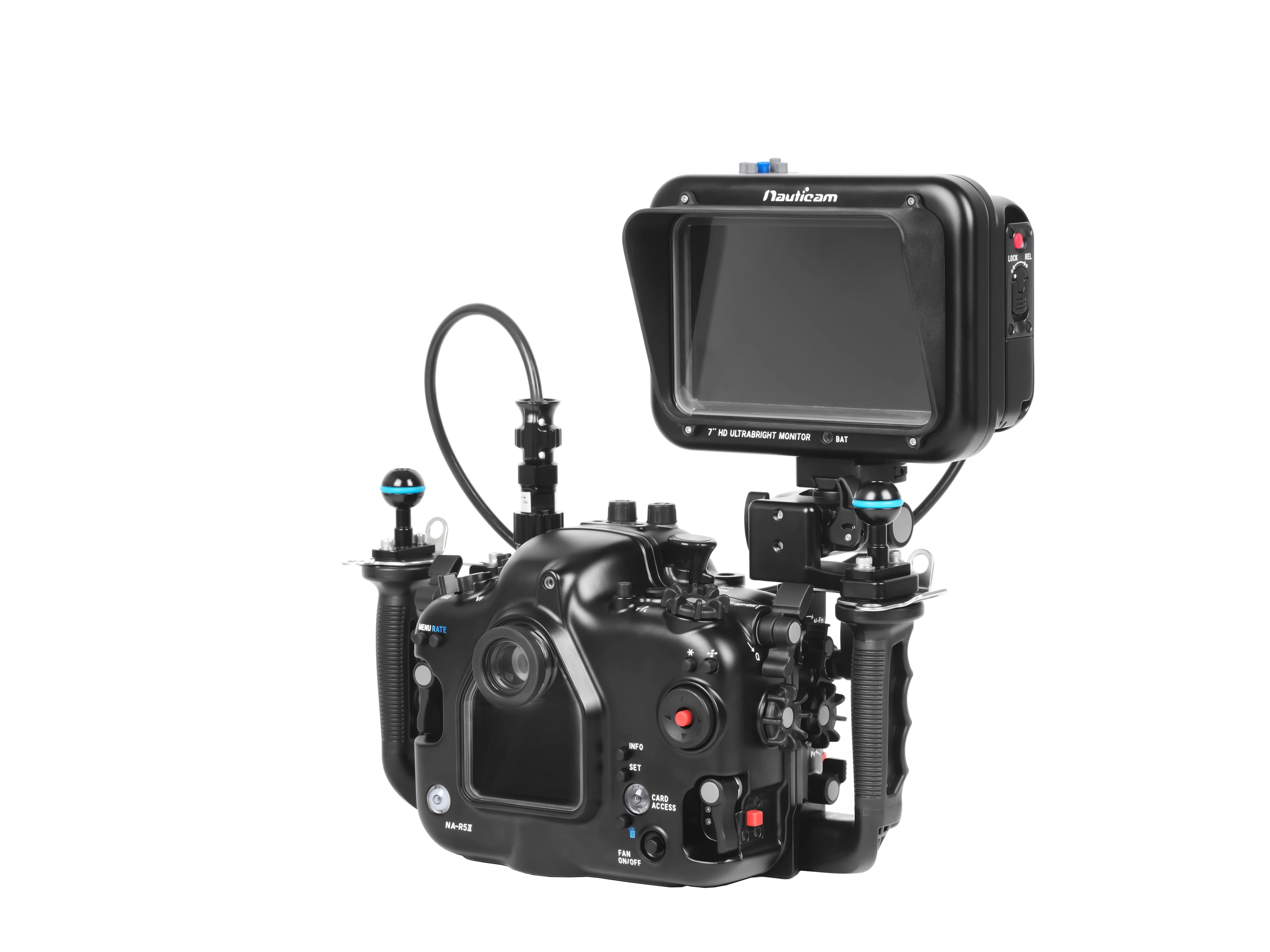

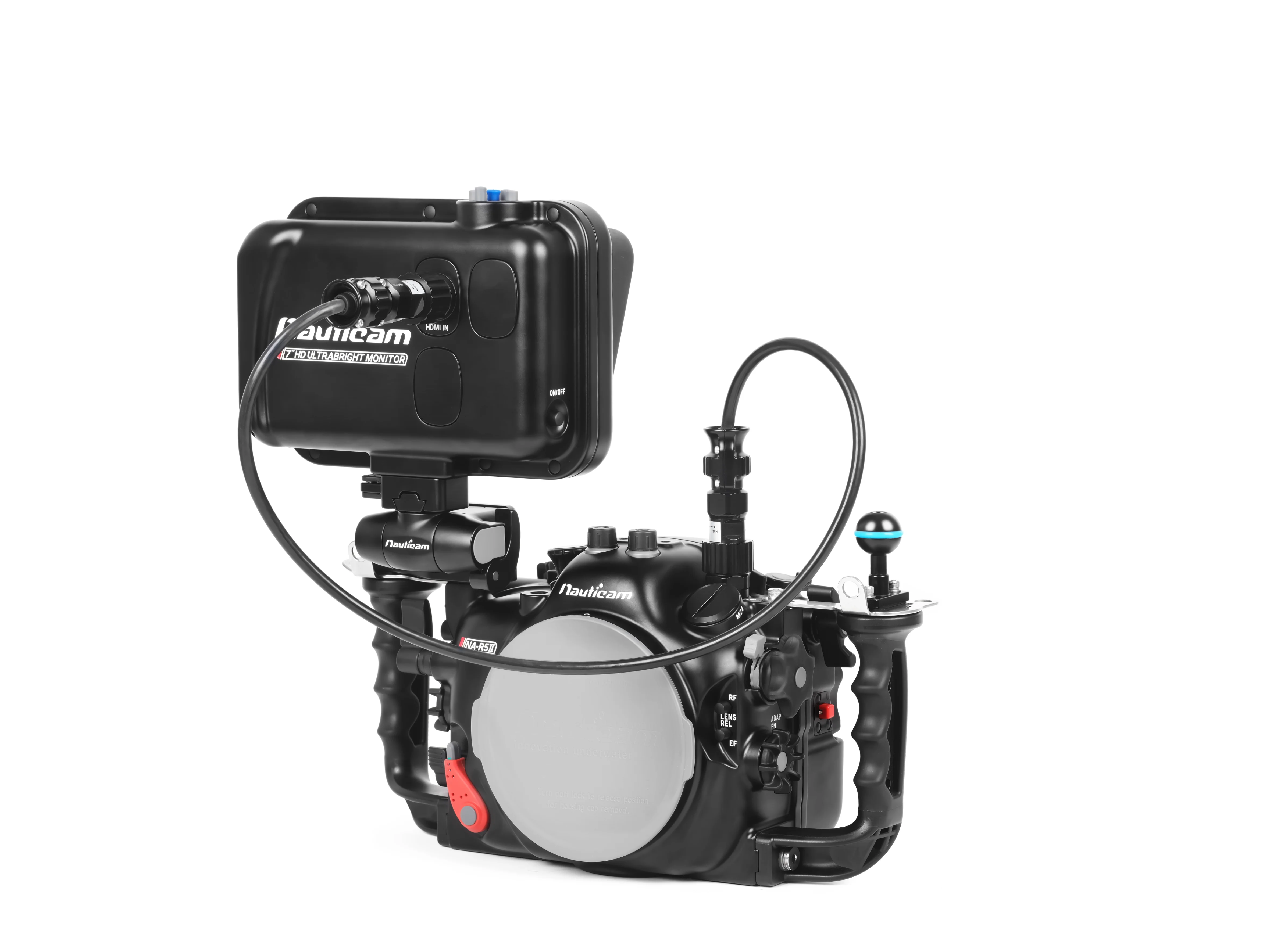

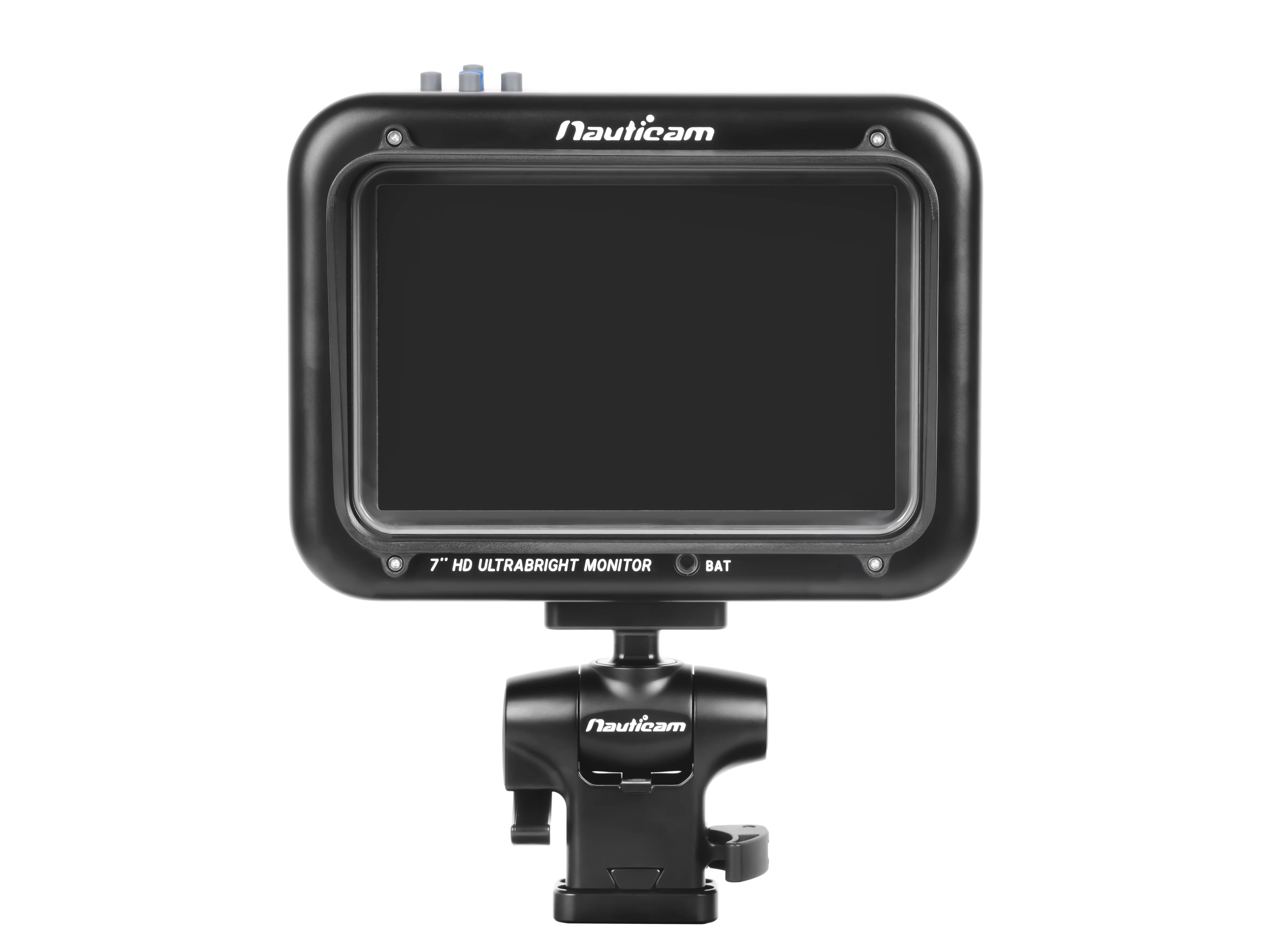

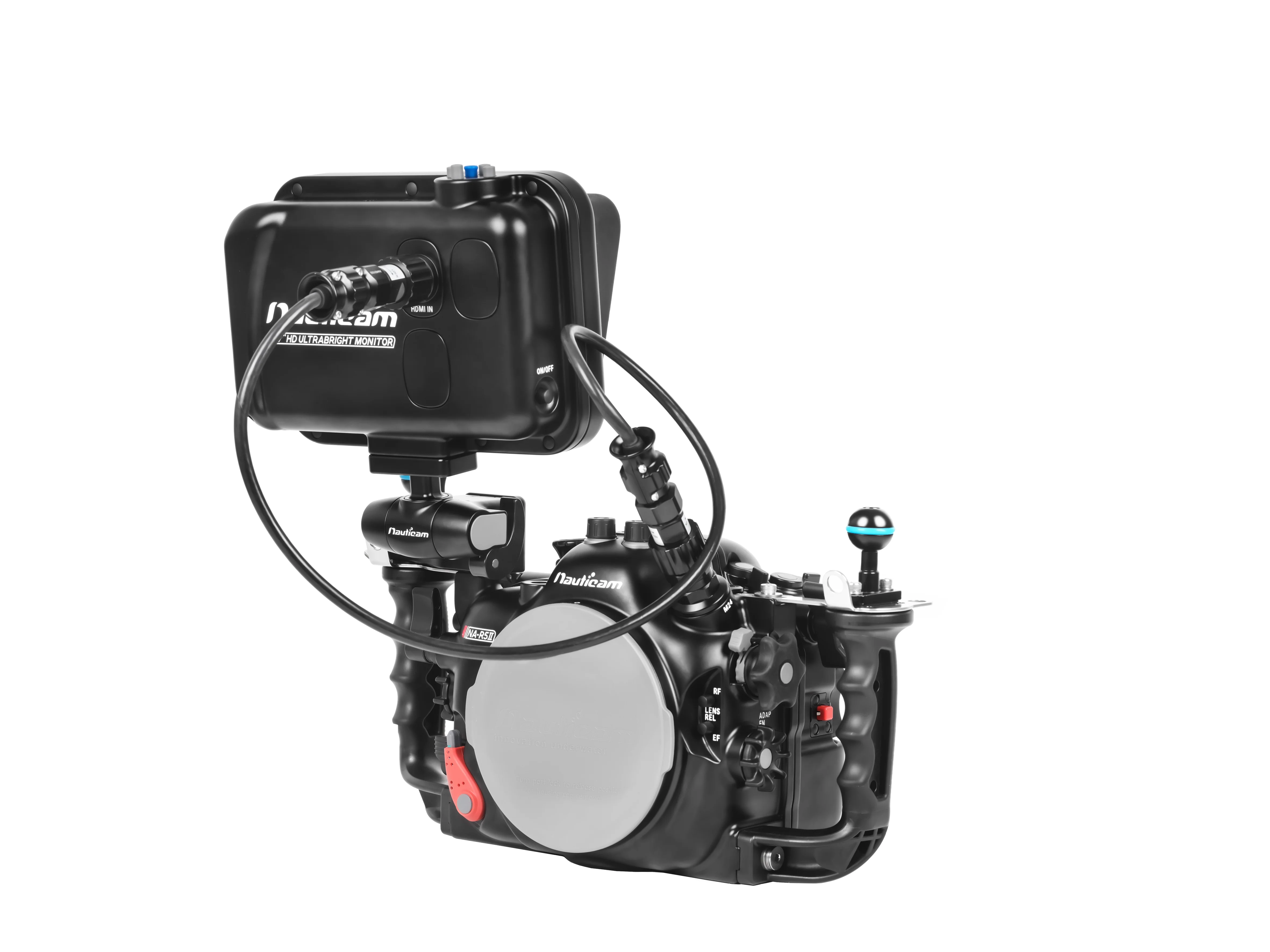

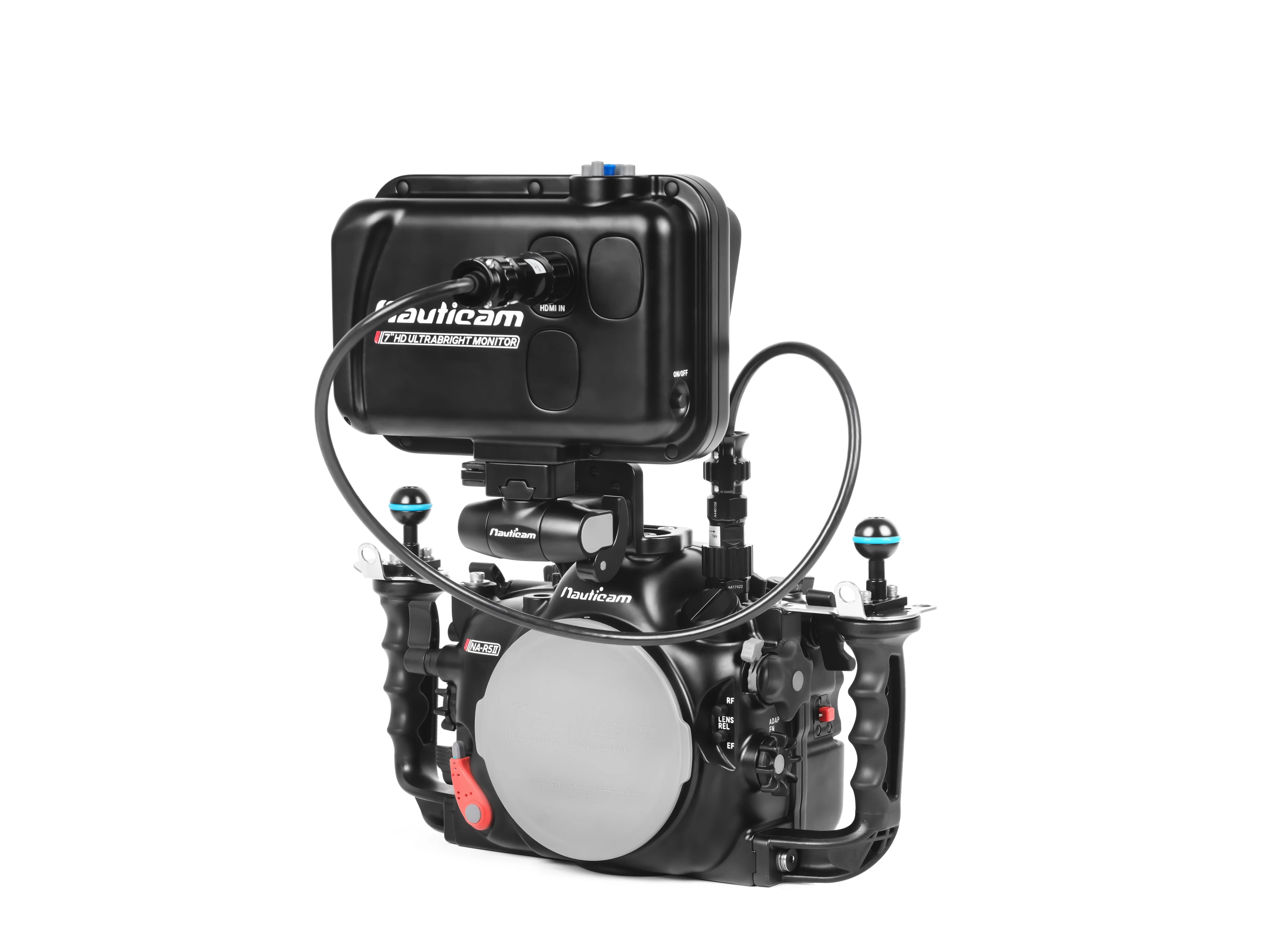

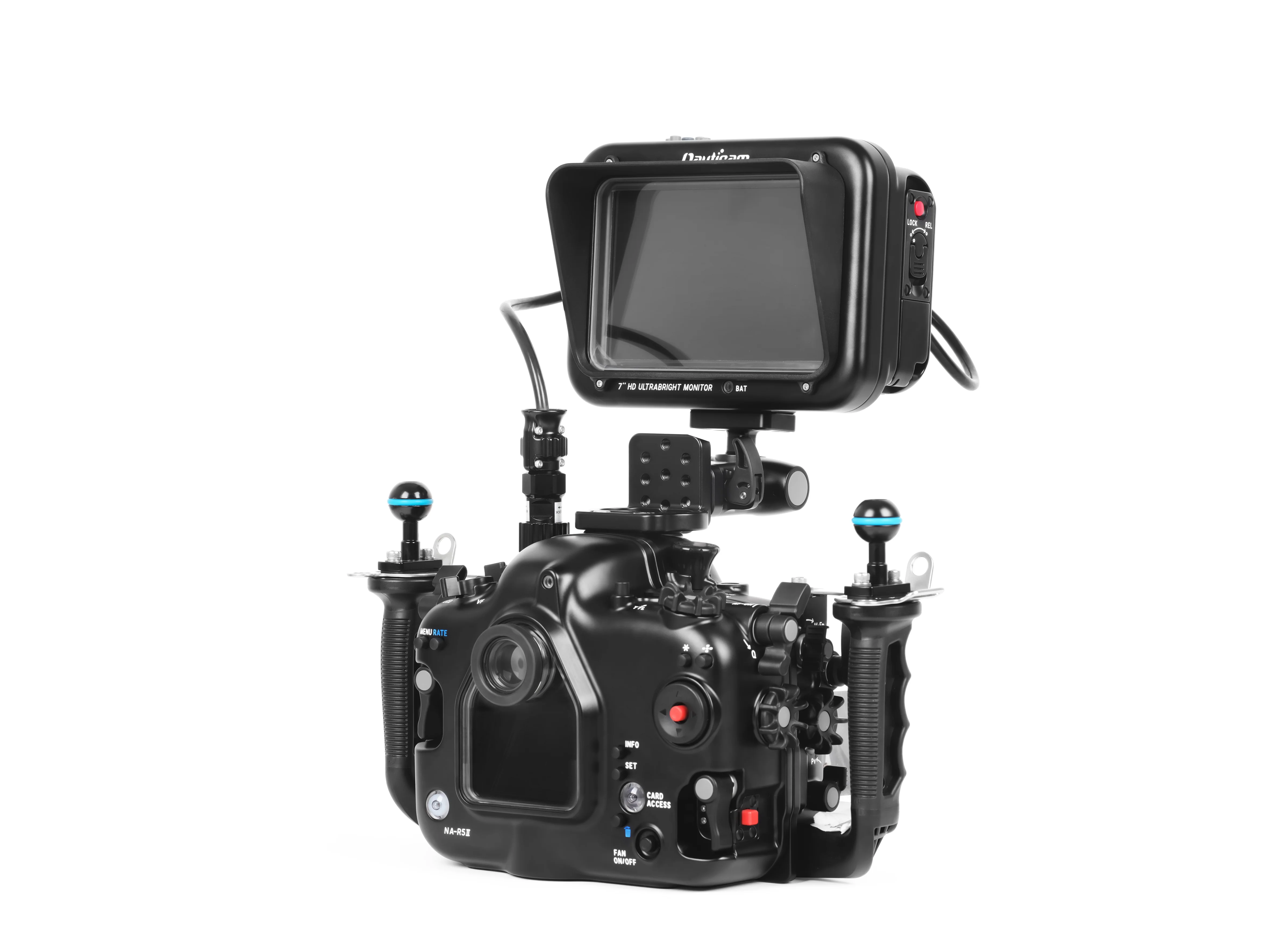

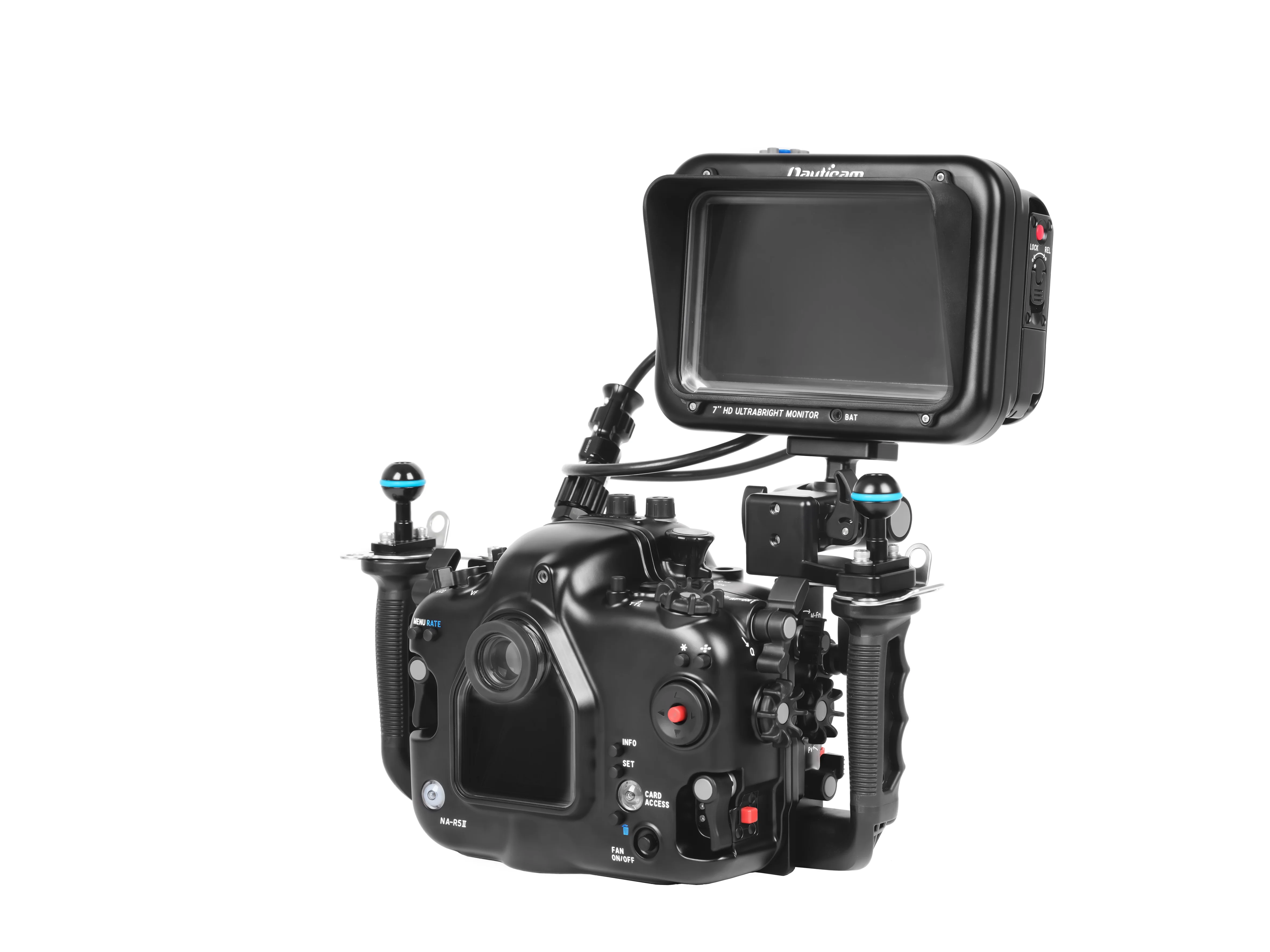

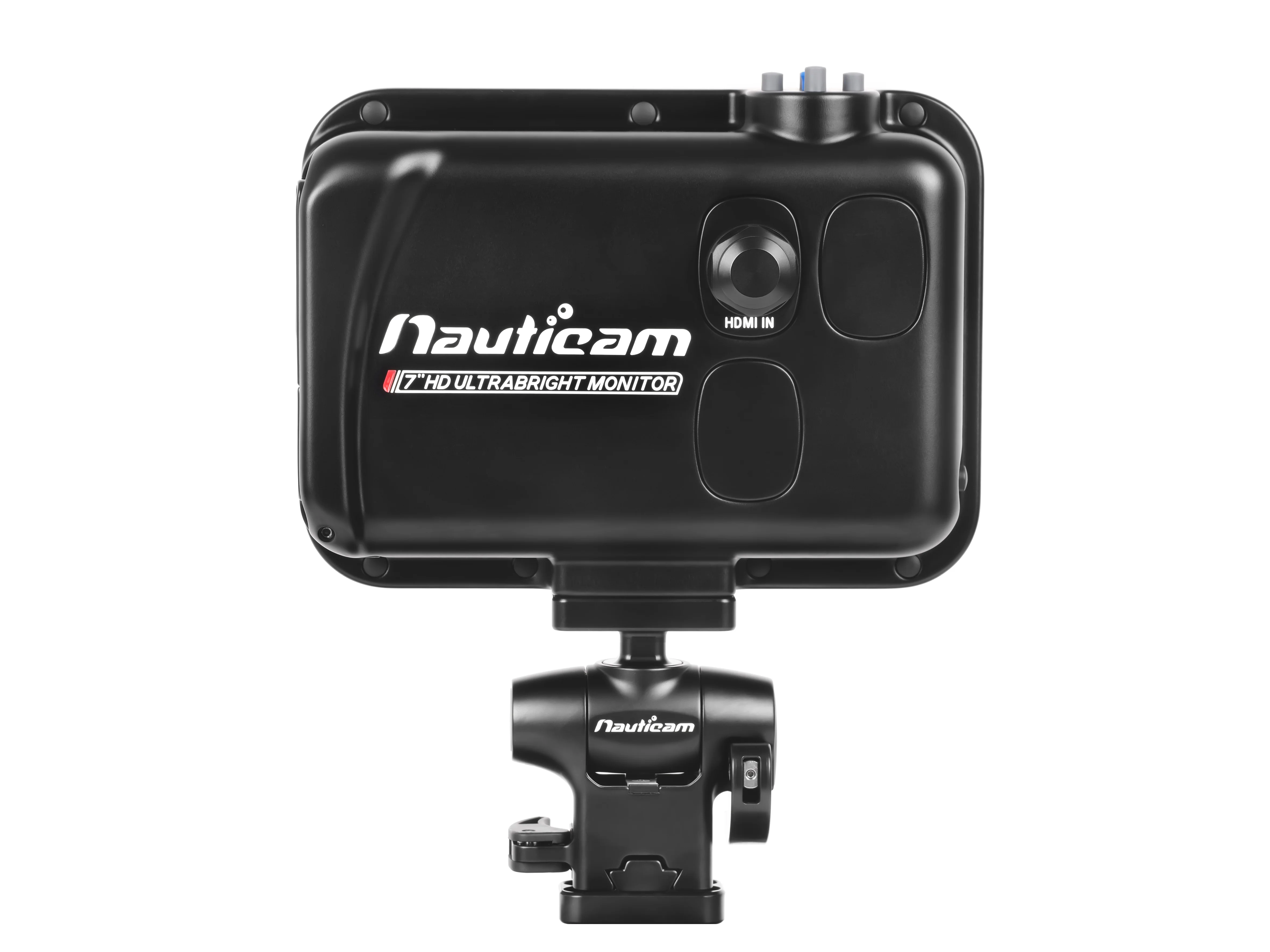

The Nauticam 7'' T7 HD UltraBright Monitor

Key Features:

• Exceptional Brightness & Clarity: With an impressive 3000 nit brightness, the monitor provides clear, vibrant images even in direct sunlight, allowing to clearly monitor exposure, compostion, and critical focus.

• Advanced Image Control Tools: The monitor is loaded with all kinds of assist tools to make your job easier underwater. Tools like  Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Vector scope, Waveform, and Zebra are all accessible.

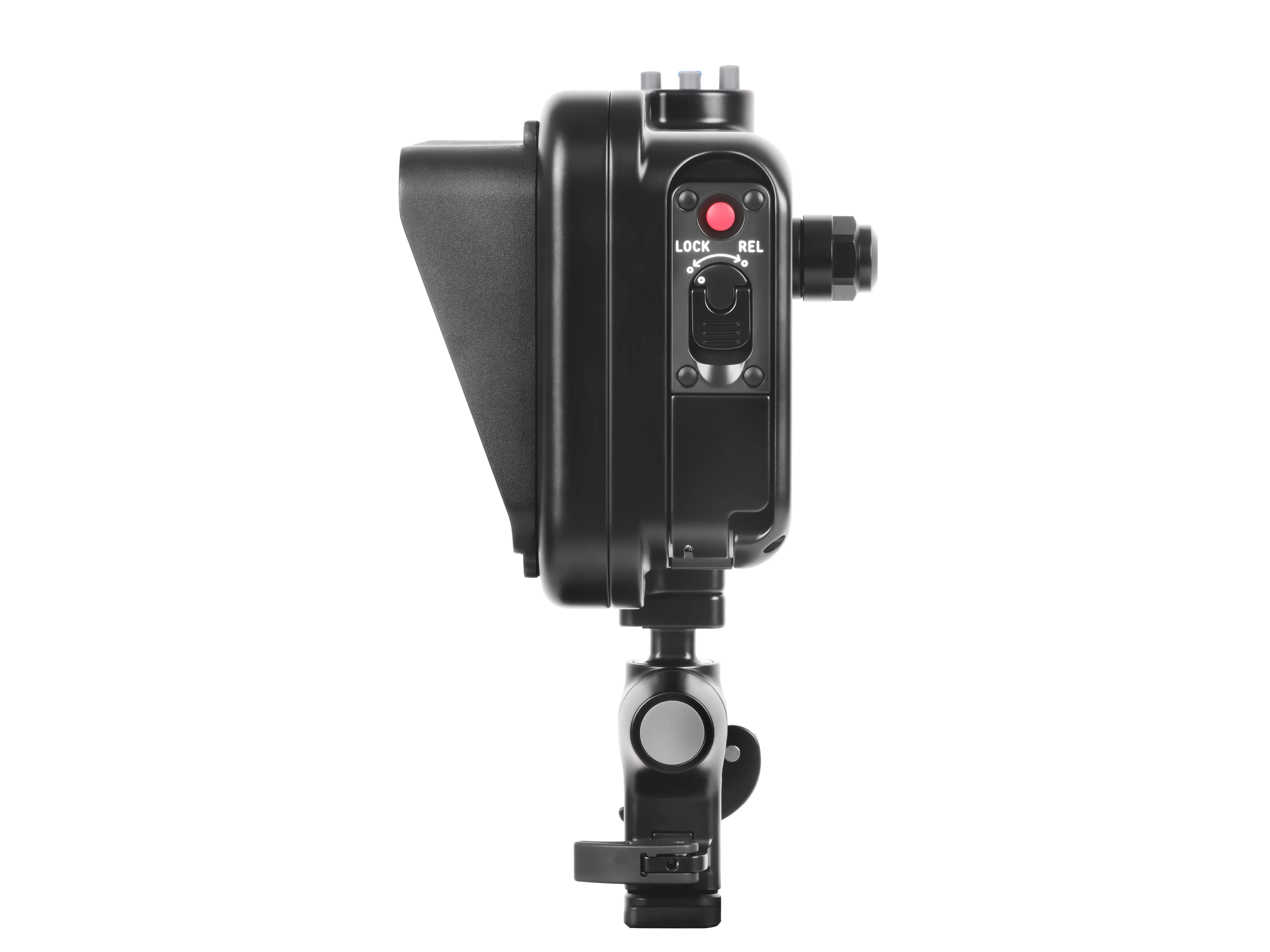

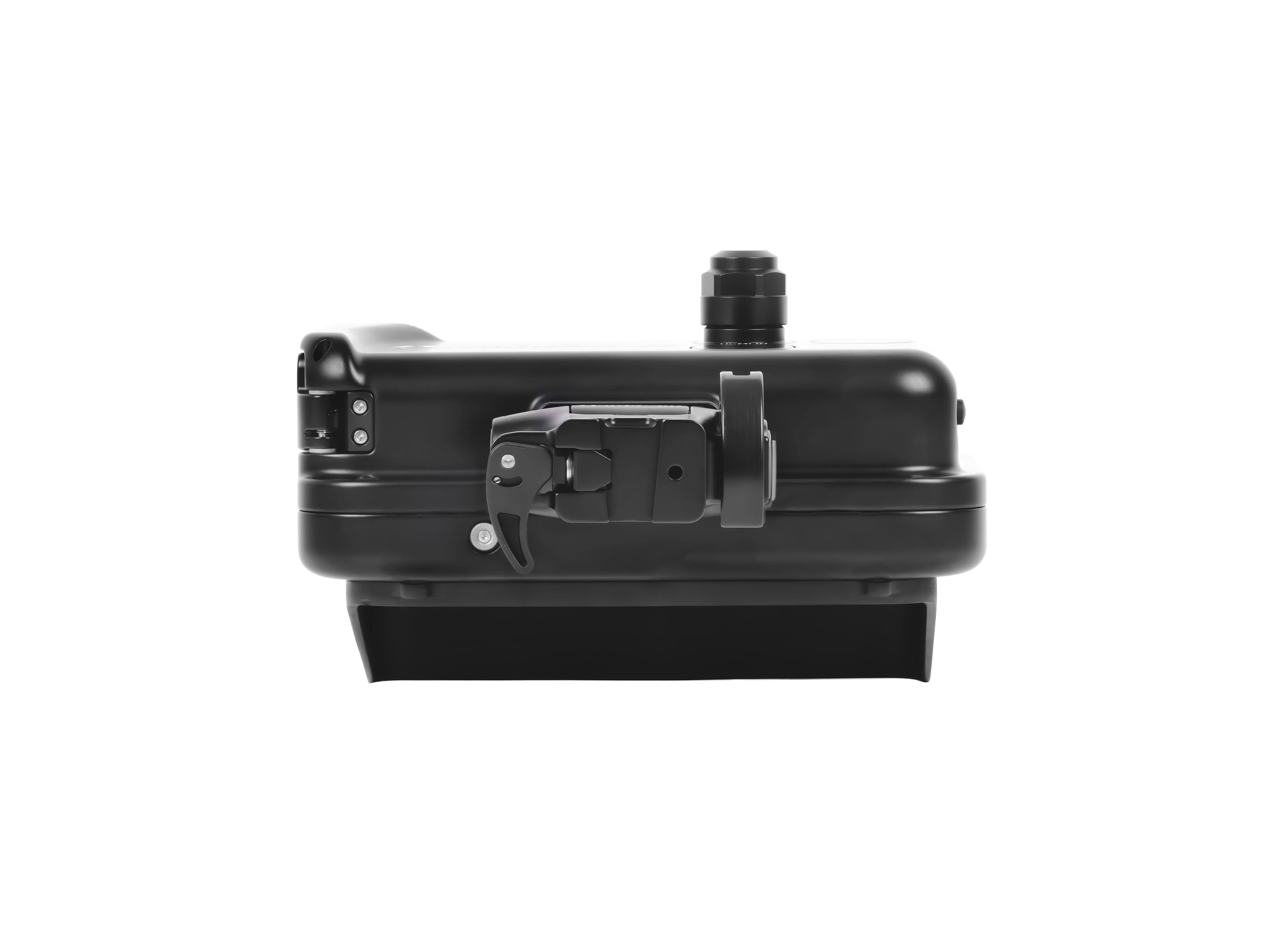

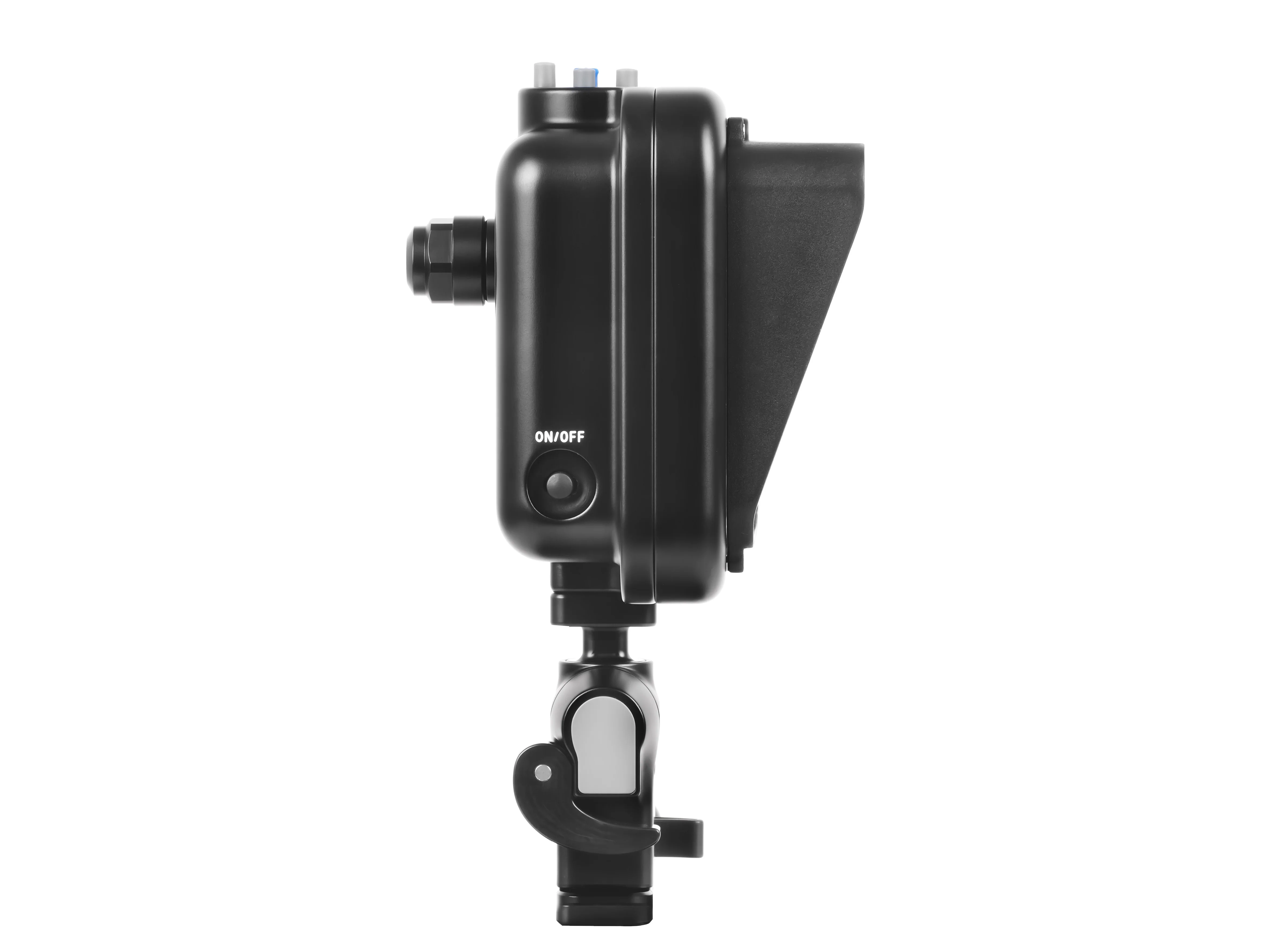

• Swivel and Tilt Adjustable Monitor Mount System:  This newly designed mount system alows the monitor to be positioned in a variety of orientations based on the operators preference and shot type. Adjusts using the mount are smooth and effortless and can be done quickly.


Resources:

Instruction Manual PDF Download

What’s In The Box:

• 16611 Nauticam 7'' T7 HD UltraBright Monitor
• Monitor Hood
• Swivel and Tilt Adjustable Monitor Mount System (attached to camera/Cine Housing with 2x ¼’’-20 UNC screws)
• Spare O-ring for battery door, O-ring remover and lubricant
• Padded Travel Case

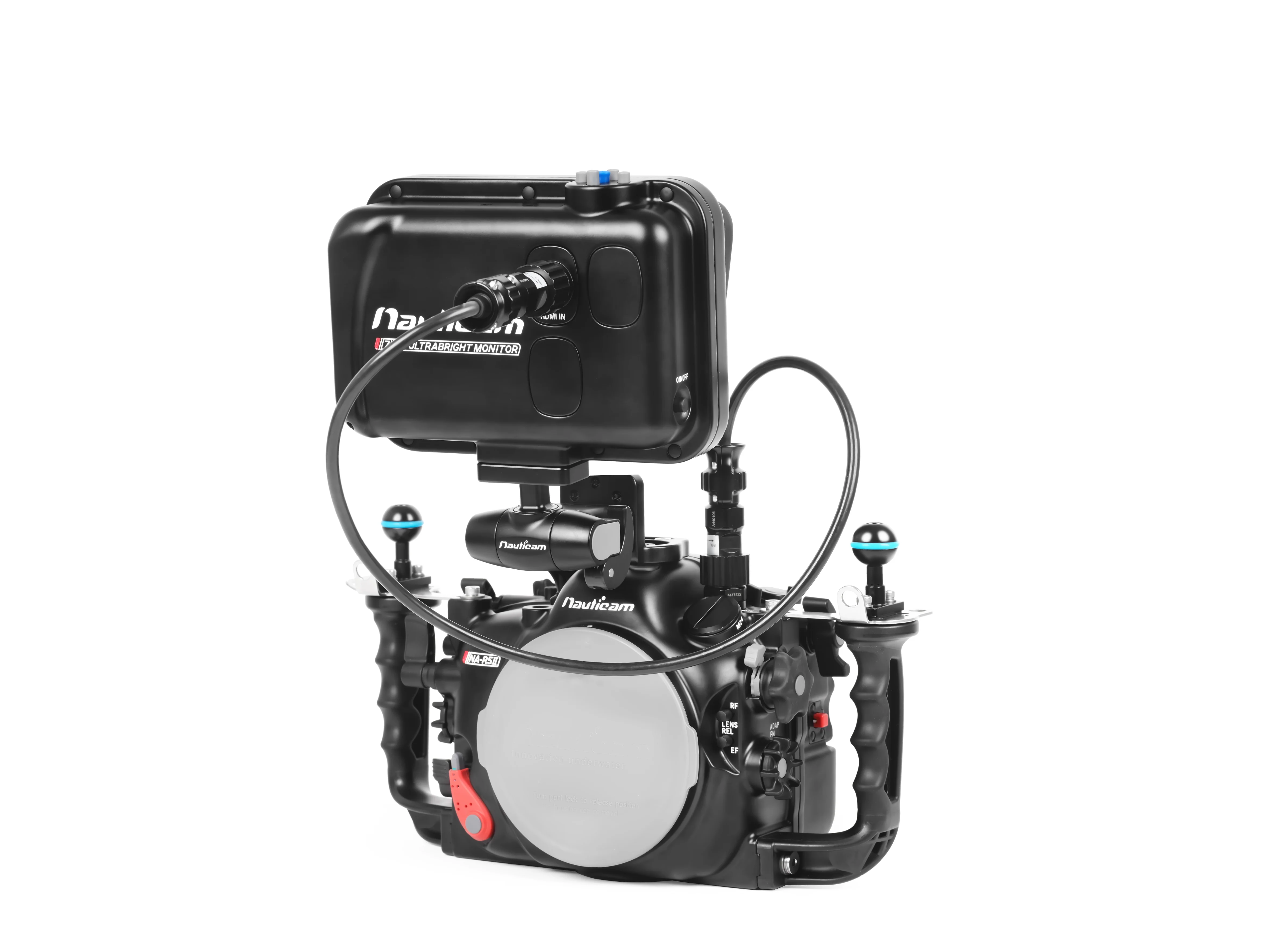

Required Accessories to use with HDMI 1.4 input:

• 25033 Standard HDMI bulkhead with M16 thread
• 25081 M24-M16 Step Down Adaptor may be required for a certain camera
• 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera)
• 25047 HDMI (D-D) 1.4 cable in 800mm length (for connection between HDMI bulkheads)
