The Story

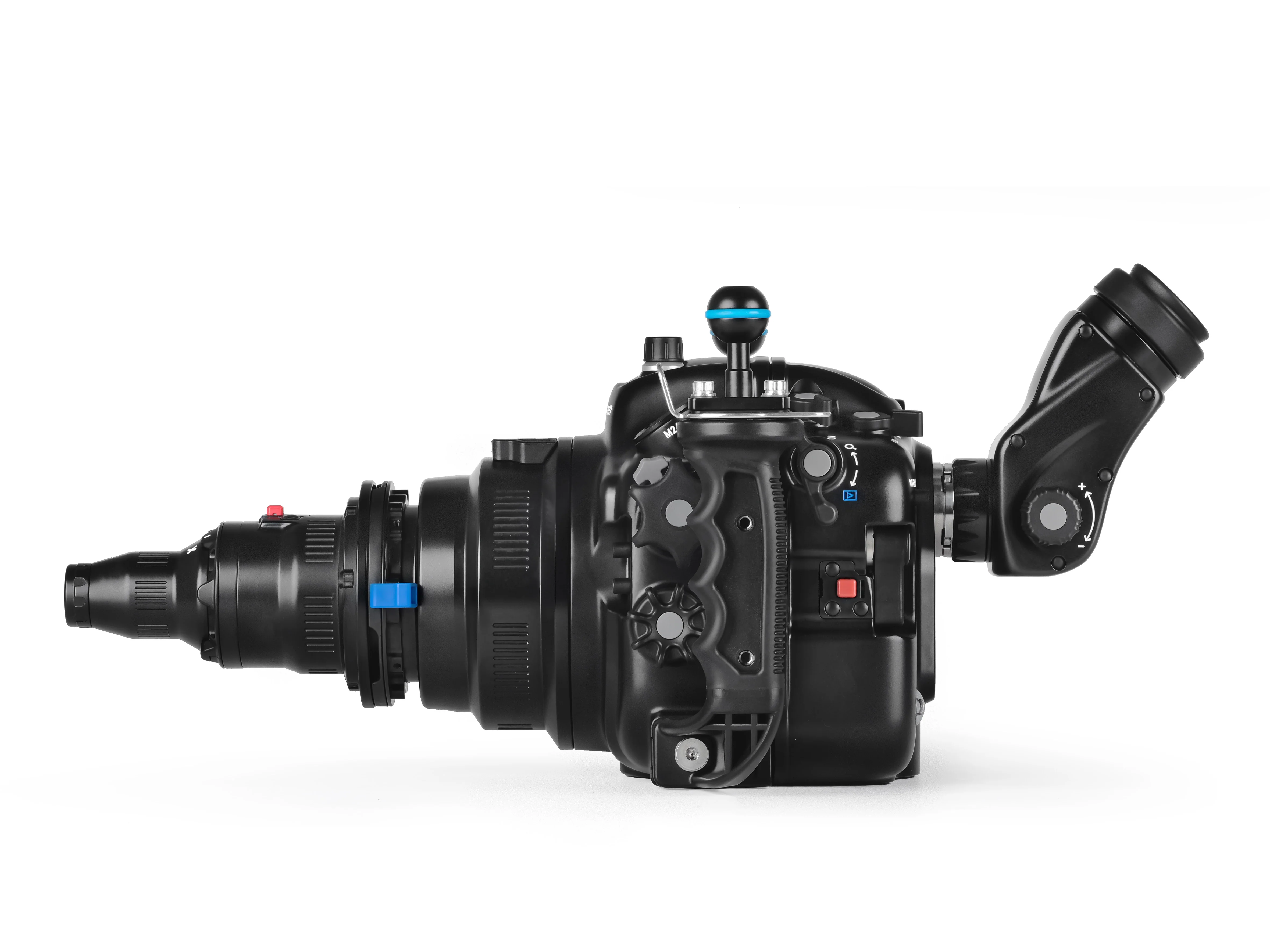

This specialized version of the Nauticam Enhanced Full-Frame Angled Viewfinder (40º/0.8:1) is designed to work specifically with the EMWL using ONLY the Focus Unit and the Objective Lens.
Technical Specs
| Magnification Ratio | 0.8:1 |
| Dioptric Adjustment Range | -3 to +3 |
| Depth Rating | 100m |
split

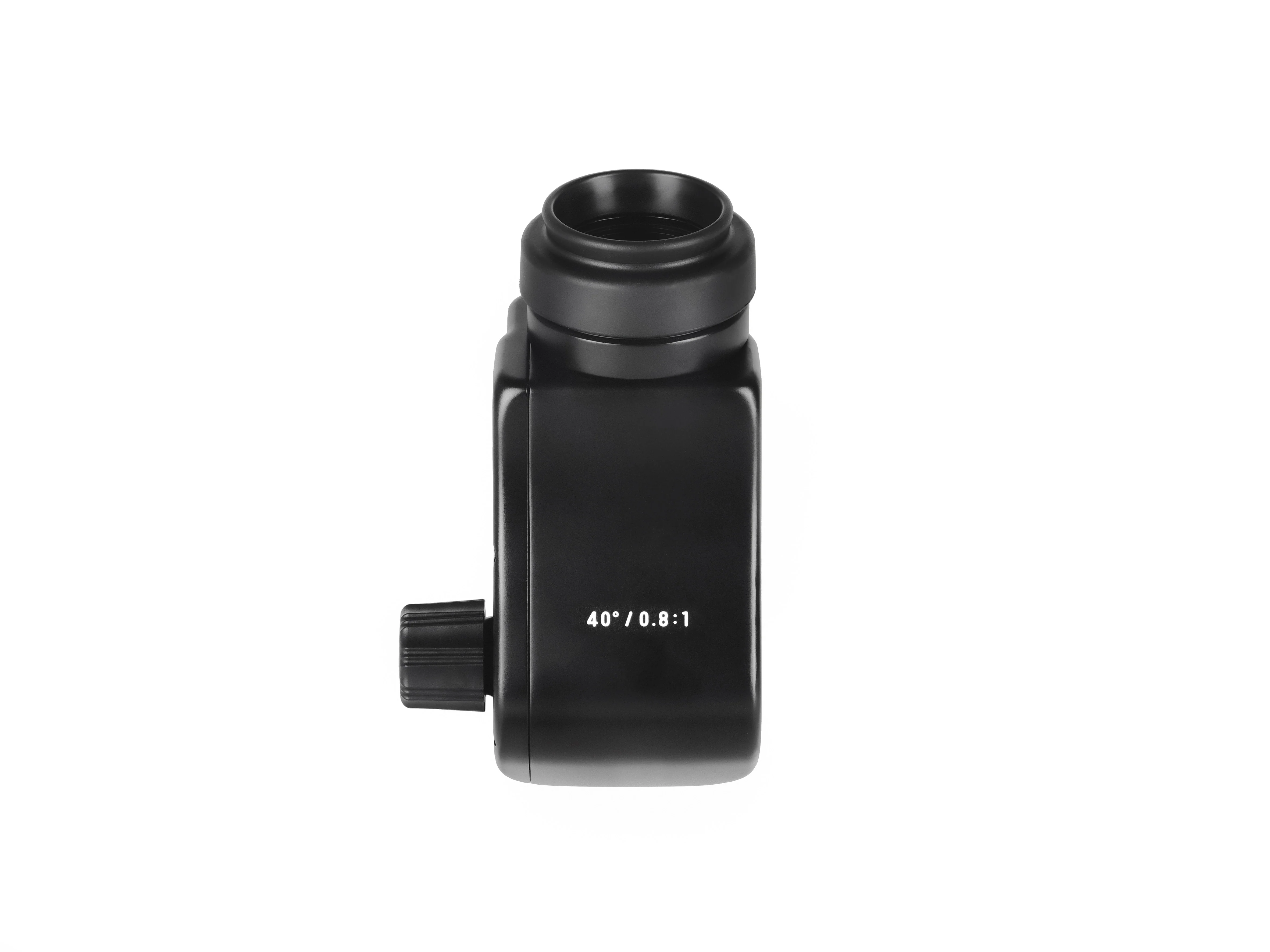

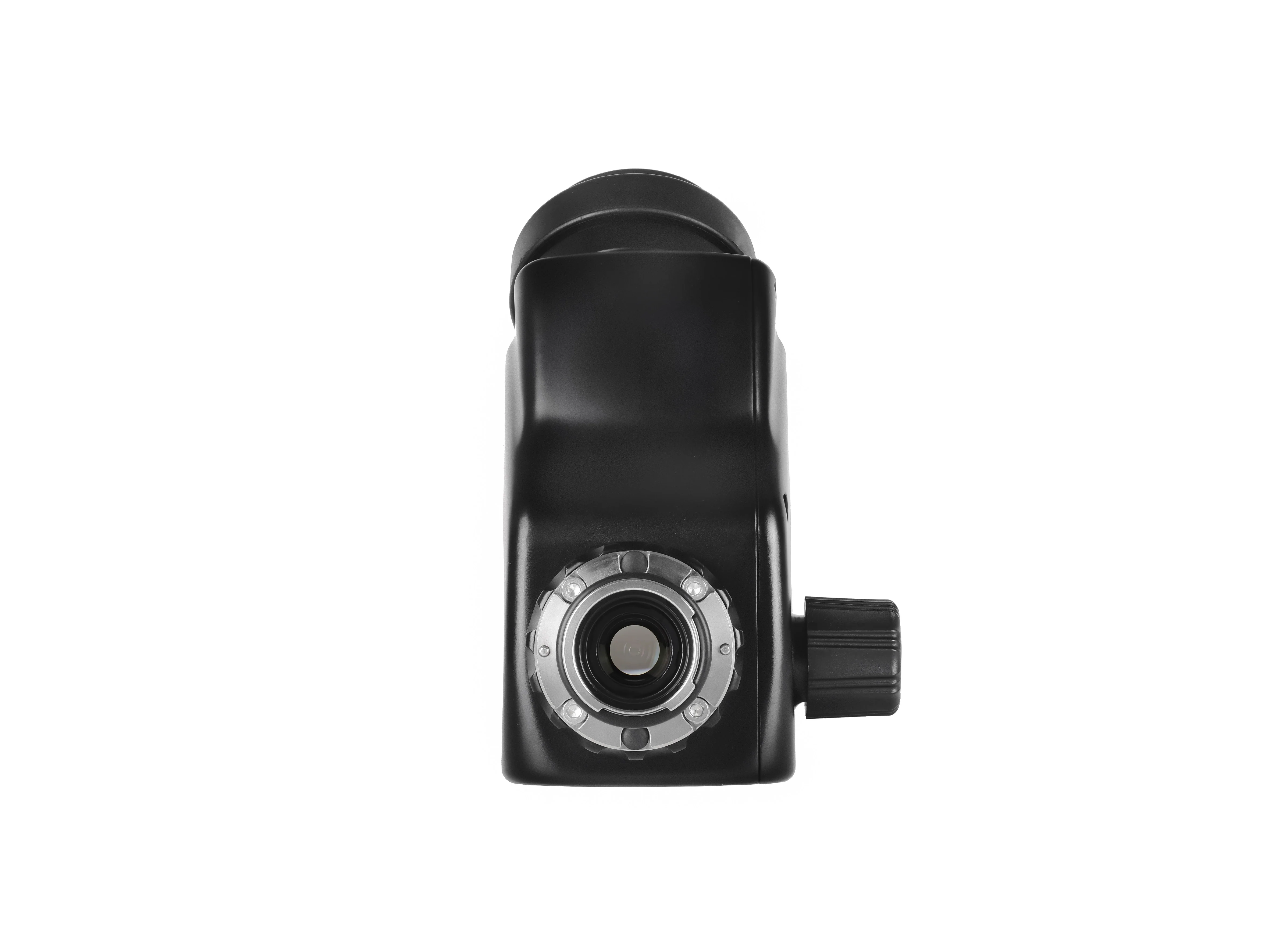

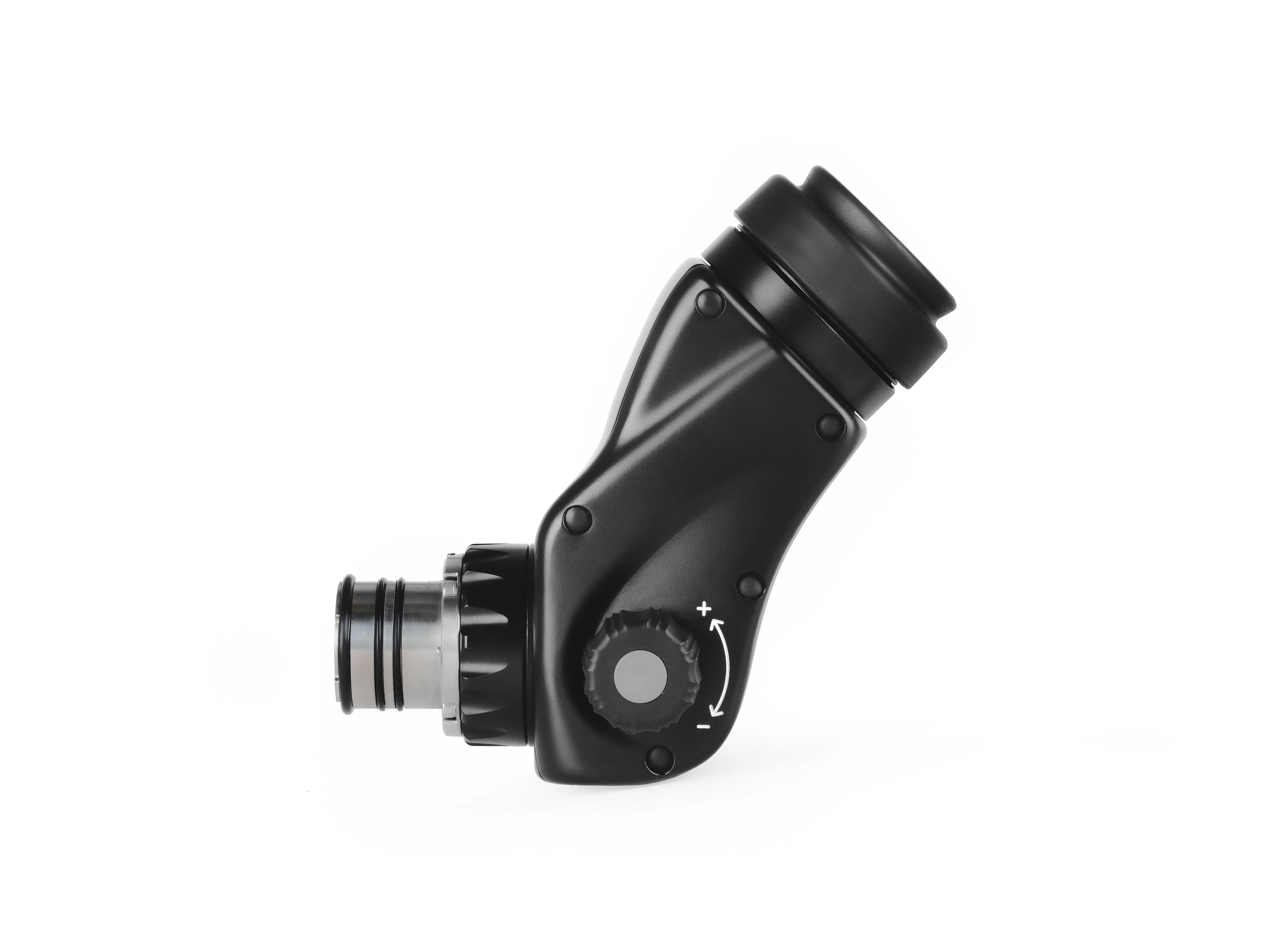

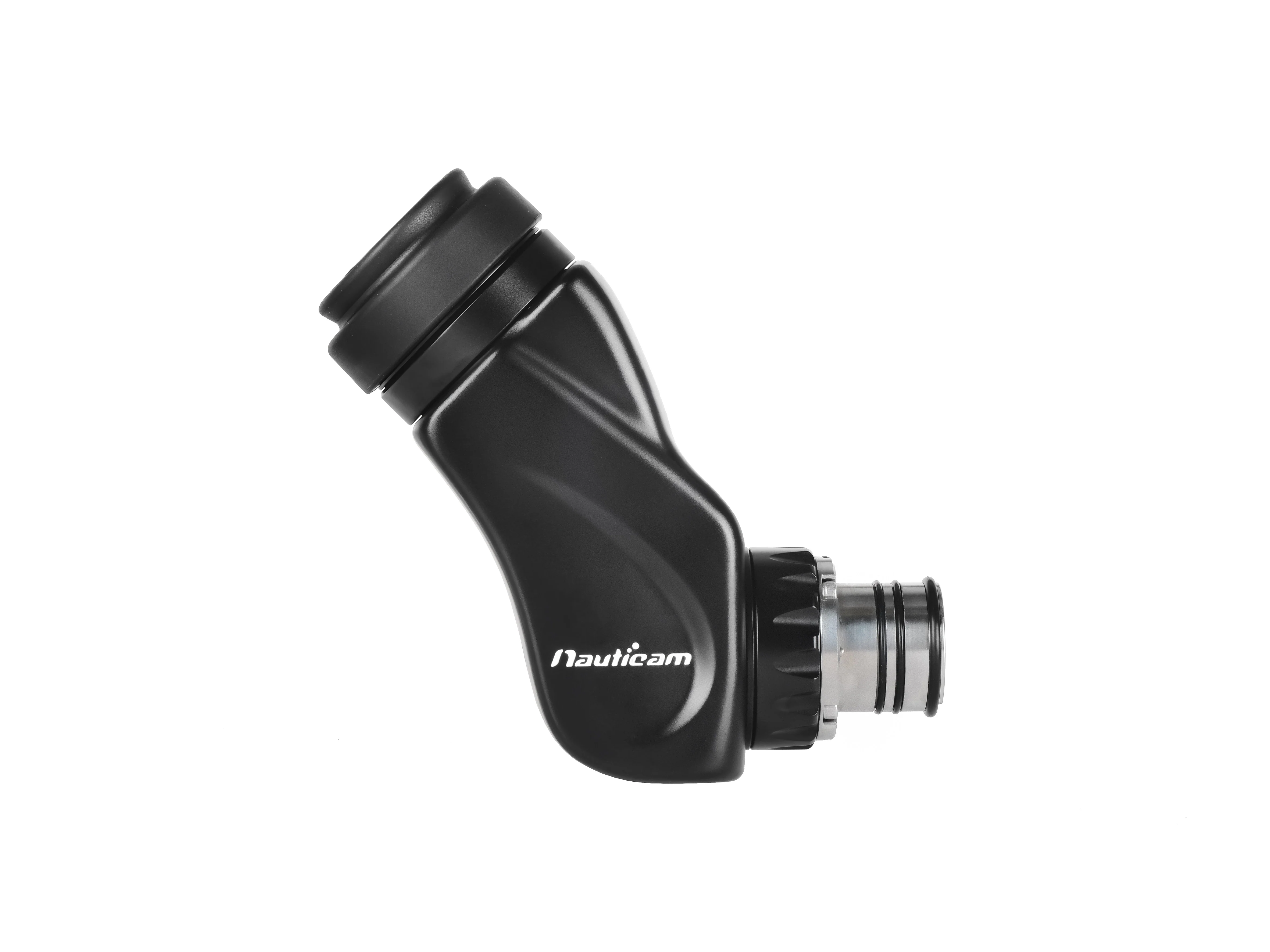

Reverse Angled Viewfinder for EMWL（40°/ 0.8:1）
In this setup, when the relay lens is absent, the image is displayed inverted in the viewfinder/EVF. However, with this version, the image is presented in its correct orientation. By removing the relay lens, it enables easier operation in specific conditions where a longer distance to the subject is unnecessary.
Compatibility

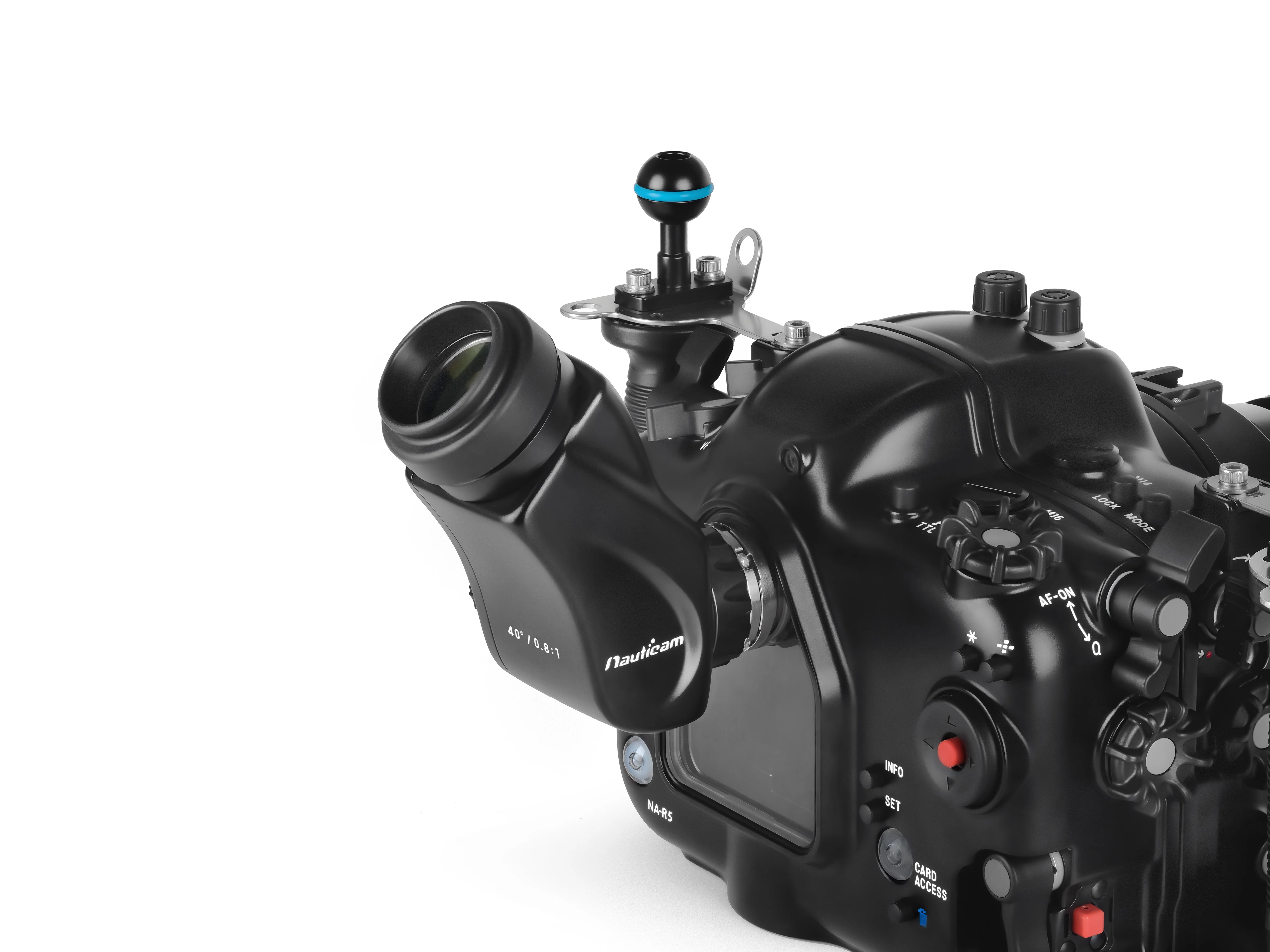

This particular viewfinder is compatible with all Full-frame DSLR and Full-frame Mirrorless housings, with the exception of the NA-A7C. For the NA-A7C housing, it requires the use of the same adapter (#32215) as other mirrorless housings.
resources
Instruction Manual
What's In The Box
- Front and rear covers
- Neoprene bag
- Spare o-rings x 3
- Manual card
Optional Accessories
- 32215 Viewfinder Collar Adaptor for 87213/87214 to use with MIL Housings
- 90020 45/180˚ viewfinder O-ring set
- 90037 Rubber caps for EVF rear, front and eye cap (3 parts)
Compatible Housing Systems
- Digital Single Lens Reflex (DSLR) Camera Housings
- Full Frame Mirrorless Camera Housings (except NA-A7C)
- Mirrorless Interchangeable Lens (MIL) Camera Housings through using #32215 Viewfinder Collar Adaptor
